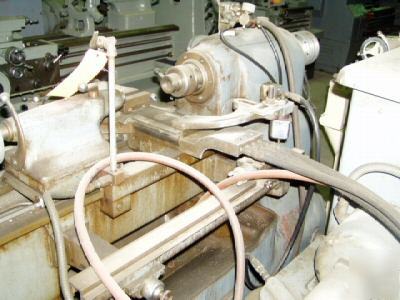

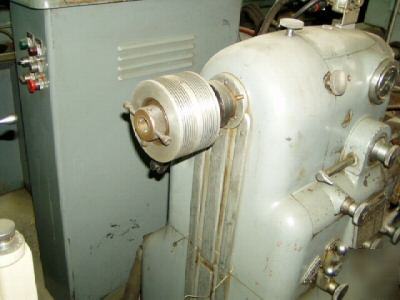

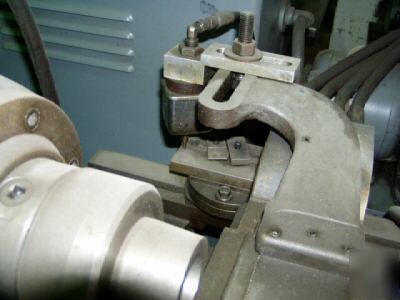

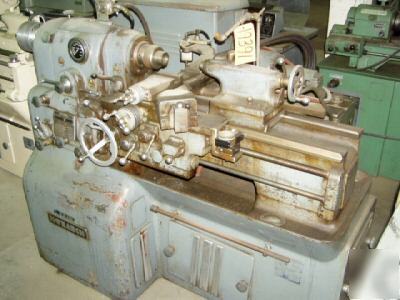

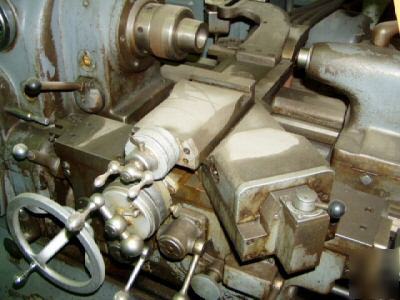

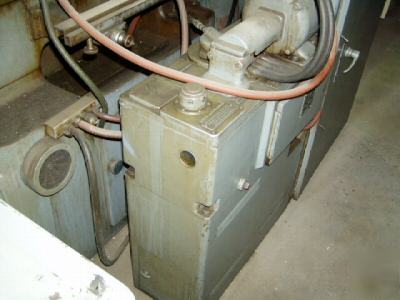

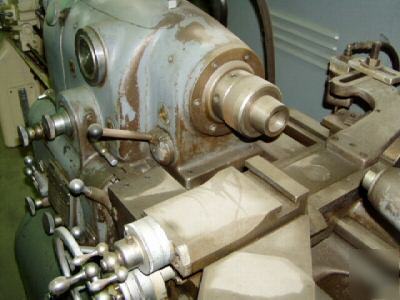

12-1/2" x 20" cc, MONARCH 10EE, 4000 RPM, Conventional/"Air-Gage Tracer" Control Our stock number: 19391 MODEL..................................10EE SERIAL NUMBER..........................44008-AT GENERAL SPECIFICATIONS (w/"Air-Gage Tracer) The "Air-Gage Tracer is so designed that lathes equipped with it can be set up quickly for either conventional lathe operation or "Air-Gage Tracer" Control. Applied to the Monarch 10EE Lathe, the "Air-Gage Tracer" provides a single cost-reducing method for long or short runs. It permits the machining of practically any combination of diameters, tapers, bevels, forms, grooves, undercuts, shoulders, necks, radii and chamfers in a single continuous cut. Swing Over Bed.........................12-1/2" Distance Between Centers...............20" Turning Capacity Over Cross Slide......5-1/2" Length Of Stroke.......................2-1/8" Maximum Diameter Change At One Setting Of Cross Slide................3" Spindle Speeds.........................40 to 4000 RPM Spindle Nose...........................D-1 3" Camlock Hole Through Spindle...................1-13/32" Threads................................(60) 3 to 184 TPI Feeds..................................(50) .0005" to .016" Air-Operated Collet Attachment Approximate Weight.....................3000 Lbs. All items are sold SPECIFICATIONS SUBJECT TO VERIFICATIONS. All items are offered locally and could be sold previous to end of store listing. **********PLEASE READ BELOW********** **Skidding, crating, palletizing and/or packaging of any item are an additional cost and will be added to the items final purchase price. Skidding fees range from a minimum of $50.00 +. ** **We will load on a flat bed, open truck or trailer free of charge. ** **Skids shown in pictures are not included with the item. ** If you want to purchase an item and have circumstances requiring the item to be picked up at a later date, please inform us before the item is purchased. We thank you in advance for your interest in this item. Please feel free to call or e-mail us with any questions or other machinery requirements. (***)-745-6008 (Monarch toolroom lathe w/ "air-gage tracer" 10EE(19391) is the responsibility of Gina Kramer) |
g.kramer@cedar--rapids.com (Gina Kramer) for more information.
