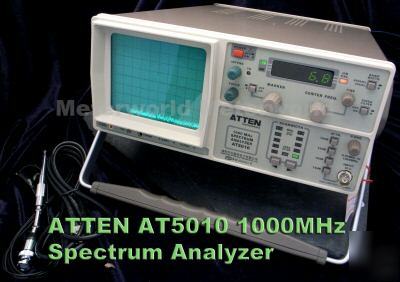

- Frequency range : 0.15-1050 MHz ( common osilloscope is within 20 MHz-50 MHz or 100 MHz ) AT5011 ( 0.15-1050 MHz ) with tracing signal generator ( Signal Source, Frequency Scanner ) - Can measure amplitude and frequency of signal simultaneously, and test and compare multiple-channel signals and the component signal - 4.5-digital display ( Central and Maker Frequency, resolution 0.1 MHz ) - Amplitude range : -100 to 13 dBm, that is, any signal within 2.24 u V-1V can be tested. ( the sensitivity of frequency meter shall exceed 20mV, 10000 times smaller than the spectrum analyzer ) frequency resolution 20 KHz, 400KHz and Vedio filter Display accuracy of Center Frequency : +/-1000KHz Maker Accuracy : +/- 0.1 % of Span +/- 100 kHz Resolution of Frequency Display : 100kHz ( 4.5LED ) Span Width : 100 kHz/div - 100 MHz/div 1-2-5 Steps and Zero Span Frequency stability : < 150 kHz/hr IF bandwidth (-3 dB ) : 400 kHz and 20 KHz Option ( email us for price) : AT5000-F1 Frequency expander ( 1050-2050 MHz ), AT5000-F2 Frequency expander ( 2050-3050 MHz ), AT5000-F3 Frequency expander ( 3050-4050 MHz ) Option : Spectrum Analyzer probe For warranty parts and service: All purchased are final, will replace defective product only. Return package must be in the original packaging, everything must be in new condition. Missing partÂ’s or anything in original contact will not qualify for any refund. Defective item can be exchanged within 7 days of receipt. Replacement and refunds will not be processed until the return item received. (New 1GHZ AT5010 spectrum analyzer frequency scanner is the responsibility of Lynette Burgess) |
