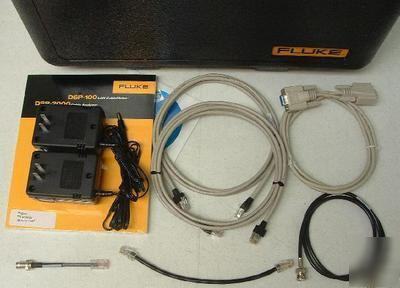

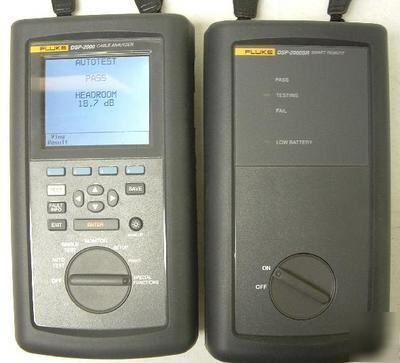

Digital Cable Analyzer w/ Accessories Included Accessories Listed at the Bottom. Be sure to add us to your Favorites list!. Warranty: 30 Day Exchange Warranty Fluke DSP-2000 Digital Cable Analyzer The DSP Series of rugged digital cable analyzers is designed for cable installers and network owners who need to certify high-speed, copper and fiber cabling to today's industry standards and tomorrow's emerging standards. DSP-2000 cable analyzers enable you to certify network cabling at the touch of a button. All models feature Fluke Networks' superior digital test technology that fully complies with all current test standards. Both the DSP-2000 CableAnalyzer and the DSP-100 CableMeter test tools are classified by Underwriters Laboratories, Inc. (UL) to deliver TSB-67 Accuracy Level II for the Basic Link and Channel. The DSP-2000 provides input protection from live ISDN circuits. It tests NEXT from both ends (to 155 MHz) and can detect and exclude sources of noise from its measurements - ensuring accuracy. Its rugged construction makes it perfect for on-site use while its bright, backlit display allows it to be used in those hard-to-see locations. With the accompanying, free Windows-based DSP-LINK software you can quickly and easily upload all cable test results directly to your PC. - Delivers TSB-67 Accuracy Level II for Basic Link and Channel as classified by Underwriters Laboratories, Inc. (UL) - Provides auto-diagnostics of cabling faults in graphical and text representations - Tests NEXT from both ends to 155 MHz - Detects/excludes sources of noise from NEXT measurements - Provides fast test times: completes test of a 4-pair Cat 5 cable in 20 seconds - Stores 1,150 TIA TSB-67 test results and up to 3,000 fiber test results - Monitors traffic on 10BASE-T and 100BASE-TX networks to help you identify if the cable link is the source of the problem - Tests a wide variety of LAN cabling systems: UTP, FTP, STP (IBM type 1,2,6,9), Coax - Includes free Windows-based DSP-LINK software - the quick and easy way to upload cable test results to your PC - Provides input protection from live ISDN circuits - Has a rugged, solid construction, built for the job site Cable Types: UTP, FTP, ScTP, STP, Coax Test Standards: TIA Cat 3, 4, and 5 Basic Link or Channel IEEE 10Base5, 10Base2, or 10base-T IEEE Token Ring 4 Mbps or 16 Mbps IEEE 802.12 (100VG-AnyLan) 4-UTP or 2-STP Aus/NZ Class C, D Basic Link or Channel Speed of Autotest: Full Autotest of Category 5 UTP cable, including 6 pair combinations for NEXT in both directions, in less than 20 seconds. Supported Tests: (Range of test is determined by network or selected standard) Wire Map: Length, Propagation Delay, Delay Skew Attenuation: NEXT, NEXT @ Remote Power Sum: NEXT, PSNET @ Remote Attenuation-to-Crosstalk Ratio: (ACR), ACR @ Remote Characteristic Impedance: DC Loop Resistance Return Loss: (RL), RL @ Remote Cable Tone Generator: Tone generator can be detected by a handheld tone probe. Display: Graphic bit-mapped LCD with back light and adjustable contrast Test Connections: Two shielded 8-pin modular connectors, RJ-45 Input Protection: Protected against continuous telco voltages and 100 mA over-current. EMC: EMC compliant. CE certification by NMi Certin BV. Number FLK95003.CFT dated on 3-Oct-95. Power: Main instrument and Smart Remote unit: Rechargeable NiCad battery with 10-12 hours typical battery life Size: 22.5 x 13 x 7.6 cm (9 x 5 x 3 in) Languages Supported: English, Spanish, Italian, French, German, Portuguese, Chinese, Korean and Japanese * Fluke DSP-2000 Digital Cable Analyzer * Fluke DSP-2000SR Smart Remote * Manual and Utilities on CD-ROM (Fluke network dsp-2000 digital cable analyzer CAT5 test is the responsibility of Luella Miles) |
