12” x 28’- 4” carbon steel screw conveyor (4218)


12” x 28’- 4” carbon steel screw conveyor (4218)

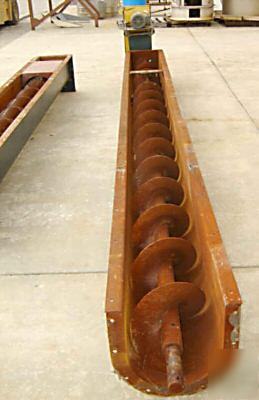

12” X 28’- 4” CARBON STEEL SCREW CONVEYOR:

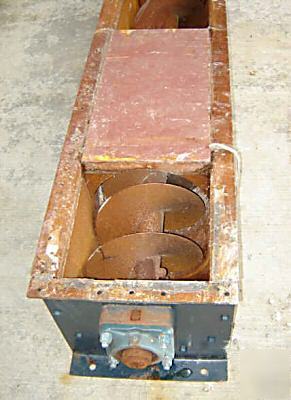

12" DIAMETER SCREW X 28'-4” LONG. 3/16” THICK CARBON STEEL FLIGHTS ARE ON 12” CENTERS WITH FEED SECTION FLIGHTS ON 6” CENTERS. OPEN TOP U-TROUGH DESIGN. 13" X 13" DISCHARGE ON DRIVE END. 2" SHAFTING.
BALDOR 2 HP MOTOR. CATALOG NUMBER W3558T. SPECIFICATION 35A001T585H1. SER. M0500. FRAME 145T. 208-230/460 VOLTS. 6-5.6/2.8 AMPS. 1740 RPM. 60 Hz 3 PHASE WITH A SERVICE FACTOR OF 1.15.

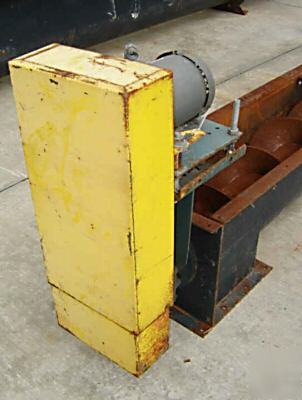

DODGE SHAFT MOUNT SPEED REDUCER. SIZE SCXT-125. PART NUMBER 351164MC 142. CLASS RATING 4.64 HP @ 2179 RPM AND A 25.64 RATIO. MAXIMUM INPUT SPEED 2179 RPM. DRIVE SECTION IS EQUIPPED WITH BELT DRIVE AND DRIVE GUARD.
(12” x 28’- 4” carbon steel screw conveyor (4218) is the responsibility of Fannie Wong)
Contact: Fannie.wong@cedar--rapids.com (Fannie Wong) (actual email hidden)
Contact Fannie.wong@cedar--rapids.com (Fannie Wong) for more information.
