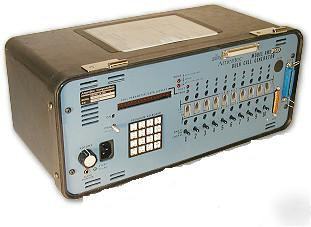

Bulk Call Generator - Analog Basic Unit comes with lid Description: Multiple port, programmable, telephone call generator/call terminator with coincident recording of attempts, average dial-tone delay, dial tone delays, no dial tones, no rings, no confirmation tones, average post-dial delay, completions and run time data. Construction: Modular, plug-in printed circuit boards. Capacity: From 1 to 30 Originate and Terminate Ports ( maximum capacity 450 Originate and 450 Terminate ports when chaining multiple sets). Types: Loop start, ground start, and 2 and 4-wire E&M. Impedance: 900 Ohms AC (1200 Ohms DC loop resistance simulated) or 600 Ohms AC (600 Ohms DC loop resistance simulated). Signaling: Dial pulse; multi-frequency (MF); and dual tone multi-frequency (DTMF / Touch Tone), with either shared tone generator or (for loop/ground start Line Cards) with individual Line Card tone generators. Types: Loop start (1 R.E.N.), and 2 and 4-wire E&M. Incoming Call Detect: Senses ringing (or equivalent) energy and trips ringing (shorts loop with 1200 ohms DC, 600 ohms optionally, impedance for loop ports). E&M ports perform programmed wink/delay sequence before answering. Registers: There are ten (10) data collection registers for each line as listed below: (Ameritec bulk call generator plus am-1 +111 w/lid is the responsibility of Candace Medina) |
Candace_Medina@cedar--rapids.com (Candace Medina) for more information.
