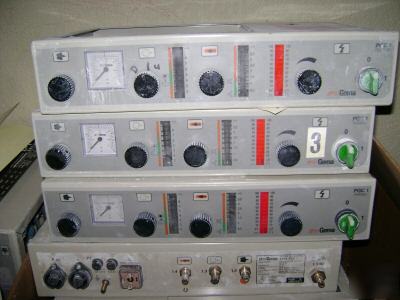

I only have very few of these left that i'm going to sell as just the control unit all the rest will be sold in fully built systems so get just the control unit and build your own for a 1/4 of the price... ALSO NOTE the units in the pic have already sold i can take a pic of the next one to be sold if anyone would like there all in the same condition as far as looks.. Technical data for the PGC 1 Powder Gun Control Selectable voltage : 100 V, 110 V, 120 V, 200 V, 230 V or 240 V ±10%, based on 230 V (198 V-253 V) Voltage selection is made on the inside of the electrical unit by resoldering the tag of the transformer. The value of the fuse for 100, 110, and 120 V is 1,0 AT and for the higher voltages is 0,5 AT. The equipment is delivered for operation at 230V from the factory. Rated output voltage (to gun) : 10 V Rated output current (to gun) : 1.2 VA o C to +40o C (+50o F to +104o F) FM No J. I. OW 7 A 6.AE (7264) Specification of the external control signal : High-Voltage - On : 0.... 2,5 V High Voltage - Off : 16.... 30 V (max. 35 V for t <100 ms) Input current : 12 mA (typically at 24 V) The control signal input is galvanically isolated, and protected from reversed polarity connection over the whole input voltage range. Main compressed air input connection thread : 1/4" B.S.P (female) Maximum input pressure: 10 bar Maximum water vapour content of compressed air: 1.3 g/m Maximum oil vapour content of compressed air: 0.1 [mg/kg] (Itw gema powder coat PGC1 pgc 1 system is the responsibility of Lenora Mays) |
