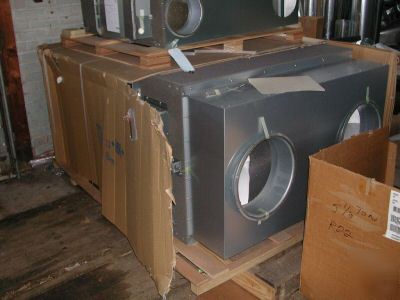

This listing is for a Lossnay Energy Recovery Ventilator LGH-F1200RX33-E New You will get: * Lossnay Energy Recovery Ventilator LGH-F1200RX3-E New (Partial Box, on a pallet) * Since there is a partial box, I am not sure if instructions are with the unit, so you can print them out from the links below. * I'm also not sure if the LCD Remote controller (Mentioned below) is included. (I'm not sure if it is normally included either). It may be optional. * You can see instructions here, and specifications can be seen on page 4 or below the pictures. * Full specs can be downloaded off the Mitsubishi site here * Installation instructions are available on the Mitsubishi site here * Submittal Data Sheet is available here Lossnay Energy Recovery Ventilators: LGH-Series * Supplies ventilation air while reducing energy consumption * Pre-conditions outside supply air with both sensible and latent energy from exhaust air * Minimal cross contamination (>1% overall) between entering and leaving air streams – effectively removes unwanted airborne material from the structure * No moving parts to fail in the transfer component – very high reliability * Stand alone control or interlock with Mitsubishi Electric air conditioning units – M-NET compatible * Temperature actuated by-pass damper Lossnay Energy Recovery Ventilators: LGH-Series Mitsubishi Electric has responded to the growing need for total, integrated management of building HVAC and indoor air quality by making it easier to interlock and control Lossnay® energy recovery ventilators with our Improved sound attenuation makes Lossnay units quiet enough for places where silence is a must such as meeting rooms and libraries. A free-cooling function is standard to help reduce costs and boost efficiency. The integrated bypass damper design makes installation and system management Bypass auto ventilation standard With conventional energy recovery ventilators, bypass auto ventilation was impossible without attaching an additional damper and adapter. With the LGH-F-RX3-E series, however, this mode is available without the use of any other parts. Bypass auto mode is the fixed setting when Lossnay is interlocked with air conditioners. When using Lossnay independently with a separately sold PZ-41SLB-E remote control, Lossnay ventilation, bypass ventilation, or auto mode By developing blades that are thinner, more widely spaced, and possessing a larger diameter of curvature, static pressure has been boosted and noise reduced while ensuring an optimal airflow. Higher static pressure means that Lossnay can accommodate the pressure loss required to meet the specifications of duct piping and terminal materials, increasing the flexibility of system installation. Multi-function LCD remote control These remote controllers are compact and attractive. In addition to controls for ON/OFF, Run mode, and Ventilation mode, the time period for filter maintenance is also displayed. The liquid crystal display has been designed for easy Mounting Location:Ceiling-concealed Indoor Input Power: (V, PH, Hz) 208/230 Volts,1 Phase, 60 Hz (In. HxWxD)65-7/16" x 48-7/16" x 34-15/16" Indoor Sound Level: (dBA)25-32-36 (low-high-extra high) . . . . . . . . . . . . . . . . . . 1,200 ft3/min / 34 m3/min Power Source . . . . . . . . . . . . . . . .208-230V, 1 Phase, 60Hz Power Consumption . . . . . . . . . . . . . . . . . . 0.810-1.290 kW Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6-5.7 A Starting Current . . . . . . . . . . . . . . . . . . . . . . . Under 14.0 A Min. Circuit Capacity (MCC) . . . . . . . . . . . . . . . . . . . . .6.9 A Maximum Overcurrent Protection (MOCP). . . . . . . . . . 15 ATemperature recovery efficiency (low-high-extra high) . . . . . . . . . . . . . . . . . . . . . . 74-69-69% Heating (low-high-extra high). . . . . . . . . . . . . . . 67-62-62% Cooling (low-high-extra high). . . . . . . . . . . . . . . 51-44-44%External static pressure (in. H20) (low-high-extra high) . . . . . . . . . . . . . . . . . . . 0.20-0.43-0.75 External Finish . . . . . . . . . . . . . . . . . Galvanized steel sheetDimensions (in.) inches . . . . . . . . . . . . . 65-7/16 H x 48-7/16 W x 34-15/16 D mm . . . . . . . . . . . . . . . . . . . . . . . 1662 H x 1230 W x 787 DNet Weight . . . . . . . . . . . . . . . . . . . . . . . . . 395 lb / 179 kgHeat Exchange System . . .Air-to-air total heat (sensible heat + latent heat) exchange, no moving partsHeat Exchange Material. . . . . . . . . . . Partition, spacing plate-cellulose fiber membraneBlower . . . . . . . . . . . . . . . . . . 9.625 in. dia. centrigugal fanMotor . . Totally enclosed capacitor permanent split-phase 0.52 HP induction motor, 4 poles, 2 unitsOperating Environment 14°F-104°F (-10°C-50°C), RH 80% or less (low-high-extra high) (230V) . . . . . . . . . . . . 36-32-25 dB (A) (New lossnay energy recovery ventilator lgh-F1200RX3-e is the responsibility of Carly Mckay) |
