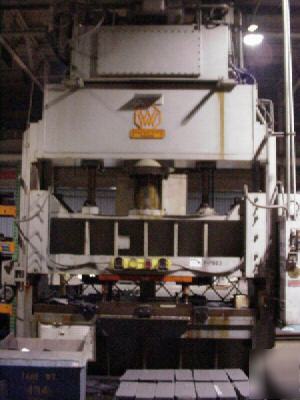

150 TON WILLIAMS & WHITE STRAIGHT SIDE HYDRAULIC PRESS One Main Single Acting Cylinder Two Double Acting Kicker Cylinders Vickers #3520V45A Hydraulic Pump & Valves Oil Collector System With Automatic Scavenger Pump 3" Bolster Plate - Dual Palm Button Controls Tonnage Capacity........................ 150 Tons Stroke Length........................... 14" Maximum Daylight to Bed................. 27" Distance Between Uprights............... 98" Bed Area, L-R x F-B..................... 96" x 24" Ram Area, L-R x F-B..................... 90" x 22" Main Ram Diameter....................... 13" Kicker Ram Diameters.................... 3-1/2" Advance Speeds, Closing................. 540 IPM Pressing Speeds......................... 64 IPM Return Speed............................ 485 IPM Main Motor, Horsepower/RPM.............. 50 HP/1200 RPM Electrical System....................... 460/3/60 Weight, Approximately................... 40000 LBS. PRICE: F.O.B. OUR WAREHOUSE............ $19,500.00 All machines/equipment subject to prior sale. (150 ton williams & white straight side hyd press #23305 is the responsibility of Clayton Jones) |
Clayton_Jones@cedar--rapids.com (Clayton Jones) for more information.
