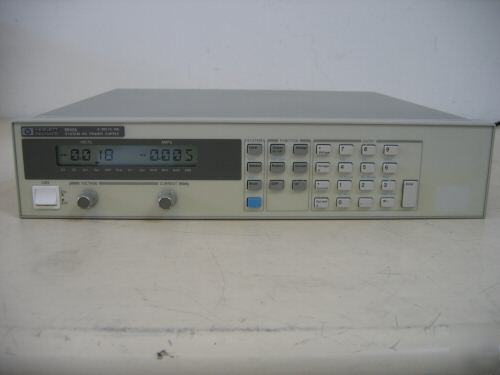

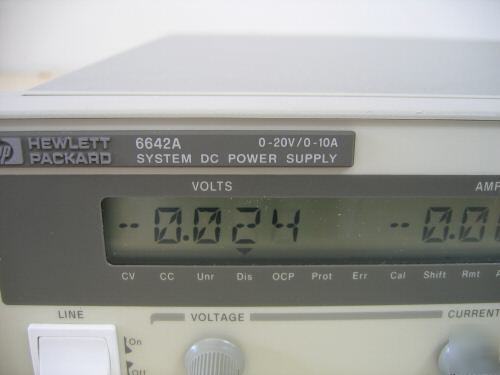

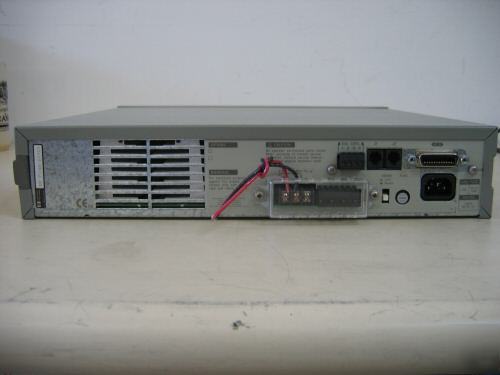

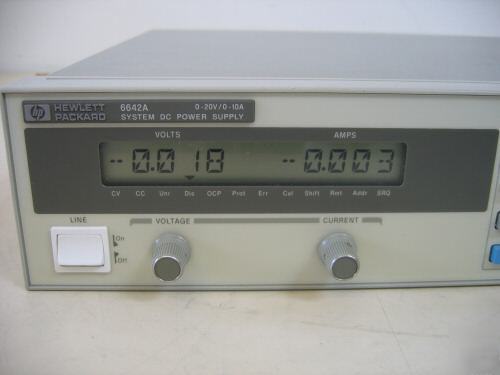

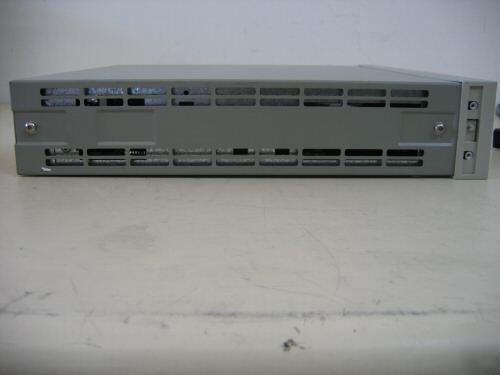

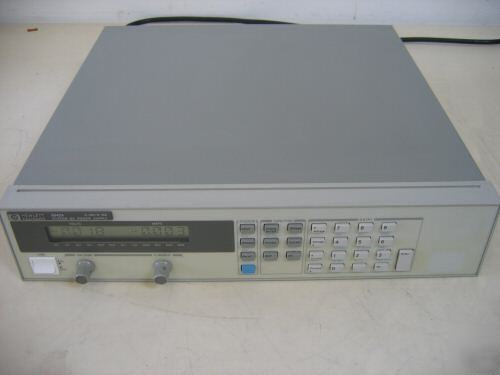

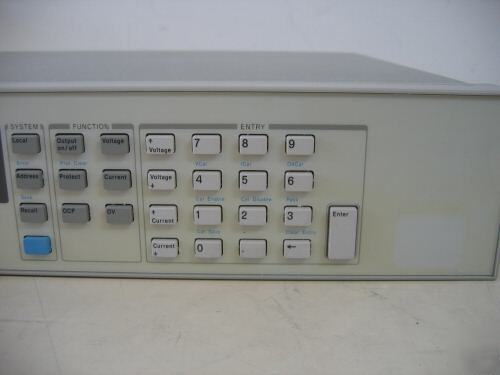

HP Agilent 6642A DC System Power Supply, 0-20V, 0-10A * Description: The HP Agilent 6642A is a single output, 200W, GPIB, versatile output programmable supply designed to maximize test throughput during design verification or on the production line, and is fully programmable to help reduce test time through a variety of automated capabilities. The 6642A provides fast, low-noise outputs; analog control of output voltage and current; fan-speed control to minimize acoustic noise; as well as parallel and series connections of multiple units. Features and specifications of the 6642A include: * Output voltage: 0 to 10 V * Output current (40° C): 0 to 10 A * Maximum current (50° C/55° C): 9A/8.5A * Programming Accuracy at 25°C ±5°C * Current 0.15% + 13 mA * Ripple & Noise (20 Hz - 20 MHz) * Voltage peak-to-peak: 3 mV * Readback Accuracy at 25°C ±5°C (percent of reading plus fixed) * Voltage 0.07% + 15 mV * +Current 0.15% + 9.1 mA * -Current 0.35% + 20 mA * Cosmetic Condition: Good (some yellowing on the front face) * Working Condition: Function Tested Good * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (Hp agilent 6642A system power supply, 0-20V, 0-10A is the responsibility of Christy Avery) |
