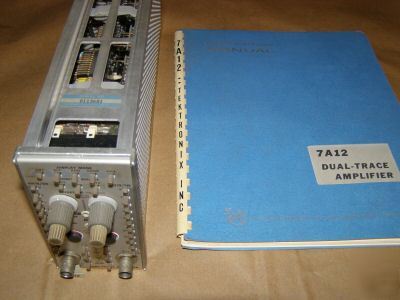

* Deflection Factor: 5 mV/div to 5 V/div * Input R and C: 1 Mohm within 2%; 24 pF within 1 pF for all deflection factors The Tektronix 7A12 Dual-Channel Amplifier Plug-In is for use with the 7000-Series mainframes. It is the basic building block for 3 or 4 trace operation. It features constant bandwidth for all deflection factors, 5 operating modes, trigger source selectivity, trace OFFSET with +1000 div range, color-keyed control grouping, and a trace IDENTIFY function. (Tektronix 7A12 dual trace amplifier plug-in with manual is the responsibility of Ivan Shelton) |
IShelton@cedar--rapids.com (Ivan Shelton)
for more information.
