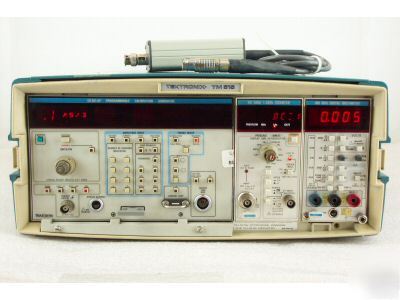

Tektronix TM515 w/ CG551AP, DC508A, DM501A, Probe The TM515 Power Module/Mainframe provides five slots and is designed to supply all power required for the TM500-Series plug-ins. Can be used in the lab or the field, just snap on the front & back covers to protect the plug-ins and it s ready to go! 6.8"H x 15"W x 20"D. The CG551AP Plug-in is a microprocessor based oscilloscope calibration generator that can be used as part of a computerized system for the calibration and verification of major oscilloscope parameters. * Voltage: 40 µV to 200 V, accuracy ±0.25% ±1 µV * Markers: 10 ns to 5 s, accuracy ±0.01% * Slewed Edge Timing: 0.4 ns to 100 ns * Pulse Head Rise Time: = 200 ps * 100 Hz to 100 kHz frequency range * 100%, 20%, 2%, 0.2% distortion ranges * Parameters: vertical gain, horizontal timing and gain, vertical bandwidth/pulse characteristics, probe accuracy and compensation, current probe accuracy and calibrator output accuracy The DC508A Counter, designed to operated in a TM500-Series Mainframe, measures frequency from 10 Hz to 1.3 GHz. A 9 digit LED display shows frequency or total events from 0 to 999,999,999. The decimal point is automatically positioned and leading zeros suppressed. The DM501A Multimeter Module measures DC voltage from 200 mA to 1000 V in 5 ranges. True RMS AC voltage ranges from 200 mV to 500 V. Resistance from 200-ohms to 20 Mohms in 6 ranges. DC and True RMS AC current 200 µA to 2000 mA in 5 ranges. Temperature -62ºC to +240ºC. Pulse Head for Tek CG 5001 and CG551AP Calibrators. IF THE PICTURES DOES NOT APPEAR IN ITS GIVEN SPACE, RIGHT CLICK ON THE SPACE AND SELECT SHOW PICTURE. CHECK OUT OUR STORES FOR MORE QUALITY MERCHANDISE AT A FRACTION OF RETAIL PRICE MrPowertech's Test Equipment Store VISIT OUR HEWLETT PACKARD STORE MrPowertech's Hewlett Packard Store VISIT OUR TEST AND MEASUREMENT STORE MrPowertech's Test & Measurement Store (Tektronix TM515 w/ CG551AP, DC508A, DM501A, probe is the responsibility of Nina Gilliam) |
nina-gilliam@cedar--rapids.com (Nina Gilliam) for more information.
