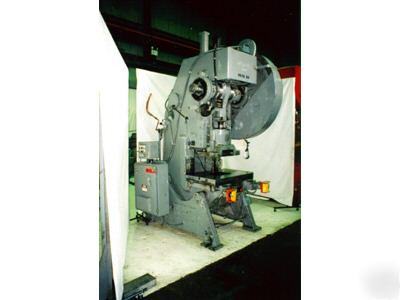

80 TON SOUTH BEND JOHNSON MODEL 80FWAC FLYWHEEL TYPE OBI PRESS Flanged ram area 23" L-R x 15" F-B Punch shaft hole in ram 2-7/8" diameter Opening in bed 18" L-R x 14" F-B Left hand crank shaft extension Overall dimensions (approximate) 80"L x 80"D x 123" High Approximate weight 16,500 lbs. 7-1/2 HP 3/60/230-460 volt Main drive motor 1875 RPM Dual palm buttons for operation Selector controls for inch/single stroke/cont. with top stop Bolster plate (3-1/2" thick, t-slotted) Dual air counterbalances to ram (#6183 - 80 ton south bend johnson obi press is the responsibility of Rena Golden) |
