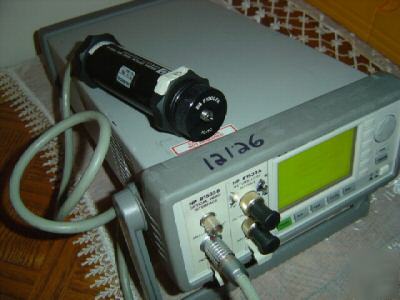

Agilent 8163A mainframe with 81533B Power Head Interface, 81525A Power head and 81534A Return Loss Module. The Agilent Technologies 8163A lightwave multimeter is a basic measurement tool that provides flexible modular configuration and easy control of test solutions. This mainframe is used for optical component test. * Display: Graphical Display, 190 x 300 points, monochrome * Display Resolution: 0.0001dB/dBm, 0.01pW to 10pW * Trigger: true synchronous on all channels * Supports modules of the 816xxx and 815xxx series Agilent HP 81525A Optical Head * Large Area Ge Sensor for Power Measurements * Optical Range of 800 to 1650nm * Power Range of +23dBm to -70dBm Agilent HP 81533BA Optical Head Interface Module The Agilent 81533B interface module operates with the 8152x optical head and 815x and 816x mainframes. * Optical Head Interface Module * Compatible with Agilent 815x and 816x Mainframes * Needed to Interface 8152x Optical Heads The Agilent Return Loss Meters are ideal for making measurements on fast telecommunications systems, such as filters, multiplexers, cross-connects, amplifiers and whole systems under test. They can also be deployed in both R&D and production environments and are suitable for singlemode applications. Return loss measurements can be made using a power meter such as the Agilent 8153A or 8163A lightwave multimeter and the Agilent 81534A return loss module. The return loss module contains a sensitive detector and a directional coupler. The source illuminates the test device, while the directional coupler and detector sense only the power that is traveling in the reverse direction. This system is best suited for accurate measurement of devices with a single reflection such as connectors, splices and attenuators. It is also used to measure the aggregate or "total" return loss of a device with multiple reflections. * Agilent Lightwave Mainframe Module * Sensitive Power Measurements * Integrated Directional Coupler (Agilent 8163A w/ 81533B, 81525A, 81534A return loss mod is the responsibility of Staci Norris) |
s_norris@cedar--rapids.com (Staci Norris) for more information.
