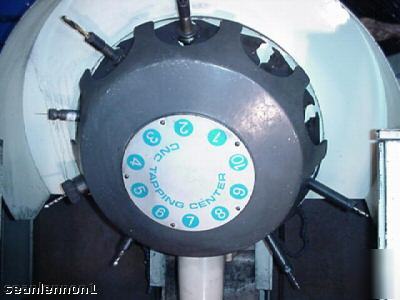

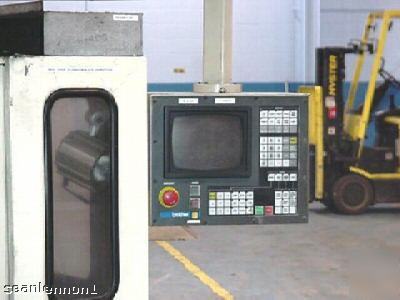

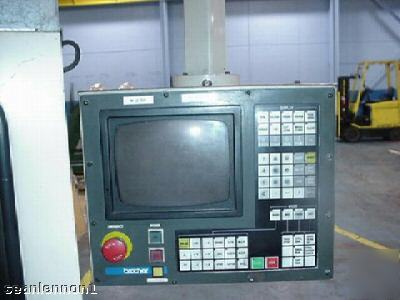

Specifications: Table size 23.62â€x11.81â€... Max. table load 150kg 330lbs... Travels (x) 16.53â€... (y) 11.81â€... (z) 9.84â€.... Spindle speed 6-6000 rpm...... Max. spindle speed in tapping 5000 rpm..... Spindle taper BT30...... Feedrate (x,y) 36000mm/min 1417ipm.... Feedrate (z) 30000mm/min 1181ipm....... Cutting feedrate 5-10000mm/min 393ipm...... ATC 10 tools......... Tool to tool 1.2 sec..... Chip to chip 2.3 sec..... Spindle motor 4.3kw/3.7 kw 5.9/4.9hp........ Machine weight 1800kg....... Machine dimensions 1560x2630mm x 2430mm(h)...... Equipped with: Brothers CNC control ...... Dryflow Filtration system...... 7 tools...... Manuals
(Brother tc-221 tapping center (3992) is the responsibility of Wendi Goodman) |
W_Goodman@cedar--rapids.com (Wendi Goodman)
for more information.
