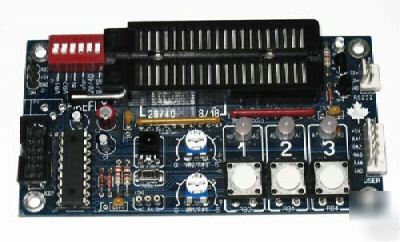

NEW Firefly TZ (Both Tutor & ZIF) Kit It’s surprising how many people want to get into microcontroller programming but have no idea what to do for their first project let alone how to even program one. Secondly even though ICP is available there is still a demand for ZIF (Zero Insertion Force) programming sockets. Here's the two kits in one. Firefly can be built as a 16F88 trainer, a PIC ZIF programming socket or both. • Microchip PIC16F88 with programmable internal 8 speed oscillator, 31.25 KHz to 8MHz • 3 dual color Red / Green LEDs & 3 User Pushbuttons (two sizes available economy / large) • 38KHz Infrared sensor & 2 Switch Selectable Variable Resistors for 0-5V on RA1 / RA3 • RS232 connector with inverting transistors (requires optional DE9 to 3pin cable adapter) • 6 pin User I/O port for external expansion and your own projects • 3 pin servo style connector for Servos, IR LED, Buzzer, Piezo speakers, switches etc. • 3 hole iButton® / 1-wire and quick test socket, small 57mm x 107mm PCB • ZIF socket for programming 8/14/18/20*/28/40 pin Flash PICs • Mode switch, Reset switch, 1.3mm 5VDC power jack, Junebug & Inchworm ICD connector *although not on the silk-screening 20pin devices can be programmed using the 8/18 setting The Firefly Assembly Instructions Includes description, schematic, parts list and more. Add $10 to the cost for a fully assembled Firefly. (Firefly tz pic 16F88 tutor and zif is the responsibility of Evangeline Duke) |
eduke@cedar--rapids.com (Evangeline Duke) for more information.
