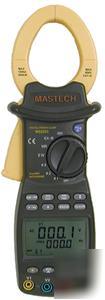

Mastech True RMS Power Clamp Meter with RS232 Interface, MS2203 The Mastech MS2203R is professional power clamp meter with a RS232 interface, it is an ideal meter to measure 3-phase or single phase power parameters such as active power, Apparent Power, Power Factor, Reactive Power and Active Energy. SPECIFICATIONS (click to see details): * AC Current: 40/100/400/1000A±2% * AC Voltage: 100/300/600V±1.2% * Active Power: 4/10/40/100/600KW±3% * Apparent Power: 4/10/40/100/600KVA±3% * Power Factor: 0.3 cap to 0.3 ind ±0.02 * Reactive Power: 4/10/40/100/600KWh±4% * Active Energy: 10/100/1000/10000kWh±3% * Frequency: 20Hz~1000Hz 0.5% * Display: 4 Digits LCD 9999 * AC Current: 40/100/400/1000A±2% * AC Voltage: 100/300/600V±1.2% * Active Power: 4/10/40/100/600KW±3% * Apparent Power: 4/10/40/100/600KVA±3% * Power Factor: 0.3 cap to 0.3 ind ±0.02 * Reactive Power: 4/10/40/100/600KWh±4% * Active Energy: 10/100/1000/10000kWh±3% * Frequency: 20Hz~1000Hz 0.5% * Display: 4 Digits LCD 9999 * POWER MEASUREMENT OF 3-PHASE 3-WIRE, 3-PHASE 4-WIRE, SINGLE-PHASE MODE * V, A, W, VA, VAR, kWh, PF, Hz MEASUREMENT * MEASURE TO TAL POWER VALUE AND FIVE POWER PARMETERS OF EACH PHASE IN 3-PHASE MEASUREMENT MODE RESPECTIVELY * AUTORANGE AND TRMS DISPLAY * WITH PC RS232 INTERFACE AND WINDOWS GRAPHICS SOFTWARE * DISPLAY MEASUREMENT TIME AND SELECT TESTED SIGNAL BE POWER SUPPLY FOR FTHE CLAME AT ONE TIME, THE INSTRUMENT CAN MEASUREMENT FOR LOG TIME * LARGELCD DISPLAY, MULTIFUNCTIONAL BUTTON CONTROL All of our new products come with a product warranty from the manufacturer that covers any defects within the stated warranty period. Repair or replacement is at our sole discretion. For DOA (Dead on Arrival) items (which is very rare), please email or call us @ (***)-628-6088 to obtain a RMA # (Returned Merchandise Authorization #) from us. we will replace your item with a new one within 14 days after we receive it from you. Founded in 1997, our company has been wholesaling and online retailing our test equipments for almost a decade. Our homepage Multimeter Warehouse has been constantly ranked top 5 in all the major search engines such as Google, Yahoo and etc when you enter the keyword "multimeter". We import all our products directly from our manufacturers, there's absolutely no middle man in between, and that's the very reason we can sell our products at a much lower price than our major competitors. All our products are designed & engineered in conformance to European & American safety standards with over 90% approved by EMC, LVD, GS and UL. Our line of products include Digital & Analog Multimeters, Clamp on Meters, Fixed and Variable DC Power Supplies and various kind of test instruments such as Tachometers, Moisture Testers, Thermometers, Digital Tape Measure and etc. Currently we are selling our products under brand names including Mastech, Sinometer and Tekpower. Certain images and/or photos used in this template are the copyrighted property of JupiterImages and are being used with permission under license. (Mastech 3-phase RS232 pc clamp power meter multimeter is the responsibility of Robin Lester) |
