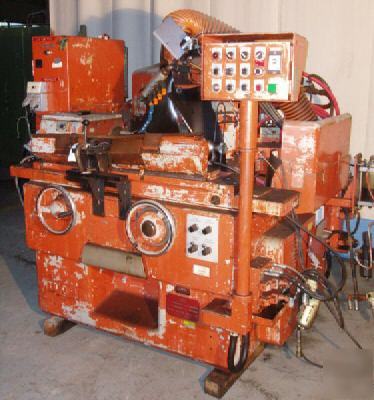

7.87" x 12.6" TOYODA PRODUCTION ANGULAR WHEELHEAD New 1980, Serial No TG1472-4, Model G0010-32, Newall DPG 2-Axis Digital Readouts 60-Degree Angular Wheelhead Design Hydraulic Behind Wheel Dresser Hydraulically Operated Tailstock Plunge - Auto Sizing - Auto Infeed Swing Over Table, Maximum.............. 7.87" 200mm Distance Between Centers............... 12.6" 320mm Wheelhead Stroke, Maximum.............. 7.3" 185mm Table Swivel Range, CCW~CW............. +/- 5-DEGREES Grinding Wheel Diameter................ 20" 510mm Grinding Wheel Width, Maximum.......... 4.7" 120mm Grinding Wheel Hole Diameter........... 8" 203mm Grinding Wheel Speeds.................. 1245 & 1445 RPM Workhead Spindle Speeds, Range......... 60 to 360 RPM Grinding Wheelhead Spindle Motor....... 10 HP 7.5 KW Workhead Motor......................... .33 HP .25 KW Hydraulic Motor........................ 2 HP 15 KW Floor Space Required, L x W............ 7'7" x 6'11" Overall Height......................... 5' Weight, Approximately.................. 8000 LBS 3600 KGS PRICE: F.O.B. OUR WAREHOUSE........... $2,950.00 Note: RUNNING 440 VOLTS. SPINDLE CAN BE RUN, MANUALLY. SOUNDS GOOD. SOME ELECTRICIAL PROBLEMS, NO PRINTS OR MAUALS. All machines/equipment subject to prior sale. (7.87"X12.6"toyoda prod angular wheelhead cyl grd #23937 is the responsibility of Autumn Blackwell) |
a_blackwell@cedar--rapids.com (Autumn Blackwell) for more information.
