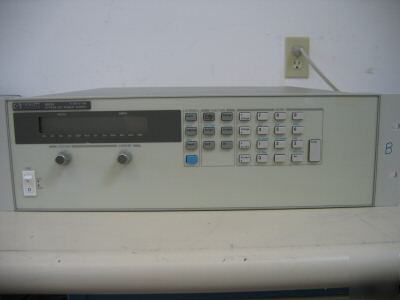

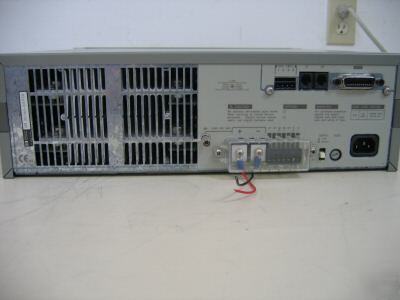

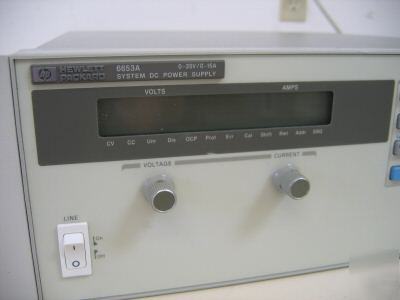

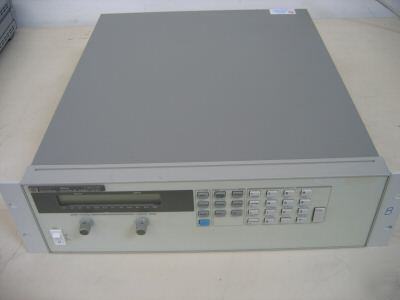

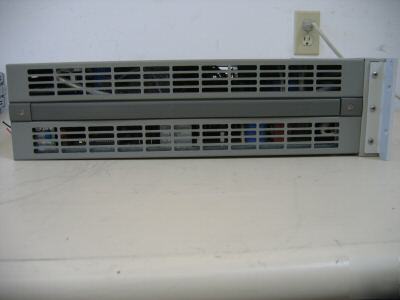

HP Agilent 6653A Power Supply, 35V, 15A, 500W * Description: The HP Agilent 6653A Power Supply is a linear regulated DC power supply designed to maximized the troughput of DUTs through the manufacturing test process with fast up and down programming time. Fast protection features, including fast crossover portection, and the ability to connect the protection circuitry of multiple power supplies can increase production yield and protect your assemblies from being destroyed by a surge of current. You can program the Agilent HP 6653A Power Supply either from the front panel or via the GPIB using SCPI commands. And using the serial link allows up to 16 power supplies to be connected through one GPIB address. You can further simply integration through VXIPlug&Play drivers. The output voltage of the 6653A can also be controlled with analog signals, which is helpful for particular types of noisy environments, and also immediate reactions to process changes. Bench use is enhanced by the fan speed control which helps to minimize acoustic noise. Specifications include: * Output Ratings: 35V, 15A, 500W * Maximum current (50°C/55°C): 13.5A / 12.8A * Programming accuracy at 25°C ±5°C: * Voltage 0.06% +: 15 mV * Current 0.15% +: 13 mA * Ripple and noise, 20 Hz to 20 MHz * Readback accuracy at 25°C ±5°C (percent of reading plus fixed): * Transient response time: Less than 100 μs for the output voltage to recover to its previous level (within 0.1% of the voltage rating of the supply or 20 mV, whichever is greater) following any step change in load current of up to 50% of rated current * DC floating voltage (either terminal can be grounded or floated from chassis ground): up to ±240 Vdc * Remote Sensing: Up to half the rated output voltage can be dropped in each load lead. The drop in the load leads subtracts from the voltage available for the load. * Command Processing Time: Average time required for the output voltage to begin to change following receipt of digital data is 20 ms for the power supplies connected directly to the GPIB * Output Programming Response Time: The rise and fall time (10/90% and 90/10%) of the output voltage is less than 15 ms. The output voltage change settles within 1 LSB (0.025% x rated voltage) of final value in less than 60 ms. * Down Programming: An active down programmer sinks approximately 20% of the rated output current * Modulation: (analog programming of output voltage and current) * Input signal: 0 to -5 V or 10 k Ohm nominal * Working Condition: Presumed Good but Untested * Other Comments / Notes: None * Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details). We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent. (Hp agilent 6653A power supply, 35V, 15A is the responsibility of Samantha Stout) |
s-stout@cedar--rapids.com (Samantha Stout) for more information.
