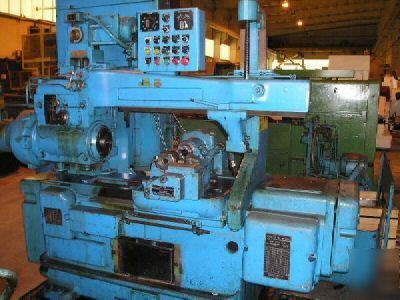

16-16 BARBER COLMAN "MULTICYCLE" HORIZONTAL New 1966, Serial No. 4041, Model 16-16, Standard Hobslide (+/- 45 Degrees Swivel) Anti-Friction Hob & Work Spindle Bearings One Single Set-Up Of Change Gears Work Spindle W/Adaptor And Arbor Power Rapid Traverse For Hob Carriage Automatic Square Cycle With Plunge Feed Complete Coolant System, Pump Tank & Piping Full Complement Of Electrics (Motors/Controls) Operator's Manual, Parts List, Wiring Diagram Max Rtd Diameteral Pitch (Nom)......... 6 DP/(4.2 Mod) Maximum Rated Diameter Of Work......... 16"/(406mm) Maximum Hob Diameter................... 5"/(127mm) Maximum Hob-Slide Travel............... 16"/(406mm) Maximum Work Slide Travel.............. 8"/(203.2mm) Hob Spindle Centerline................. 8.75"/(222mm) Hob Spindle Centerline................. .75"/(19.05mm) To Tailstock-Center.................... 44"/(1117mm) Work Spindle Thru-Bore Dia............. 4.13"/(105mm) Hob Speed Range........................ 59 To 425 RPM Feed Ranges............................ .015 To .150 IPR Main Drive Motor....................... 5 HP/1800 RPM Rapid Traverse......................... 2 HP Coolant Pump........................... 1/4 HP Lubrication Pump....................... 1/20 HP Floor Space Required................... 90"x82" Floor Space Required................... (2267x2082mm) Machine Overall Height................. 84"/(2134mm) Machine Net Weight (Approx)............ 7,600 LBS Machine Net Weight (Approx)............ (3628 kGs) PRICE: F.O.B. CINCINNATI, OH........... $19,500.00 All machines/equipment subject to prior sale. (16-16 barber colman "multicycle" horiz gear hobber is the responsibility of Lola Sharp) |
