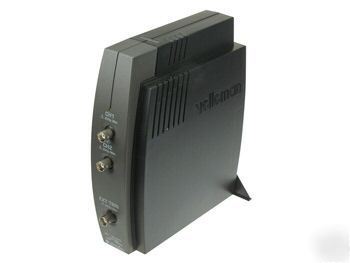

The PCSU1000 digital storage oscilloscope uses the power of your PC to visualize electrical signals. Its high sensitive display resolution, down to 0.15mV, combined with a high bandwidth and a sampling frequency of up to 1GHz are giving this unit all the power you need. The USB connection makes this unit a snap to set-up, no external power required! In the field measurements using a lap-top computer have never been this easy. This scope comes in a stylish vertical space saving design. Powerful software will fulfill all your needs, but for those who like a challenge; a DLL is supplied, which allows you to create your own application. * timebase: 20ns to 100ms per division * trigger source: CH1, CH2, EXT or free run * trigger edge: rising or falling * trigger level: full-screen adjustable * step interpolation: linear or smoothed * markers for: voltage and frequency * input range : 5mV to 2V/division * input sensitivity: 0.15mV display resolution * auto set-up function and X10 option * readouts: True RMS, dBV, dBm, p to p, Duty cycle, Frequency… * recording length: 4K samples / channel * real time sampling frequency: 1.25kHz to 50MHz * sampling frequency for Repetitive signals: 1GHz * frequency range: 0...1.2kHz to 25MHz * linear or logarithmic time scale * operating principle: FFT (Fast Fourier Transform) * FFT resolution: 2048 lines * FFT input channel: CH1 or CH2 * markers for amplitude and frequency * time scale: 20ms/div to 2000s/div * max. recording time: 9.4hours/screen * automatic data storage * automatic recording for more than 1 year * max. number of samples: 100/s * min. number of samples: 1 sample / 20s * markers for time and amplitude * recording and display of screensrecording and display of screens * inputs: 2 channels, 1 external trigger input * input impedance: 1Mohm // 30pF * bandwidth: DC to 60 MHz ±3dB * max. input voltage: 30V (AC + DC) * input coupling: DC, AC and GND * Supply from USB port (500mA) * minimum system requirements: * needs Win98SE or higher * SVGA display card (min. 800x600, 1024x768 recommended) * USB port 1.1 or 2.0 compatible * 2 x 60MHz scope probe (PROBE60S) * getting started manual * oscilloscopes_cross_reference_uk.pdf * usermanual_pc-lab2000se_uk.pdf (New velleman PCSU1000 two channel usb pc oscilloscope is the responsibility of Marina Espinoza) |
