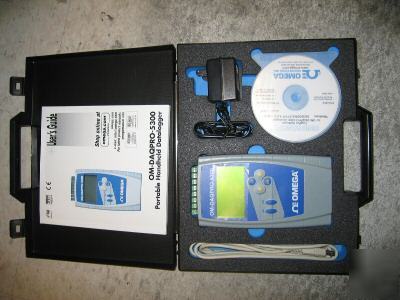

8 Channel Datalogger - Measures Voltage, Current, PT100 RTD, J, K, T Thermocouples, 2252 Ω or 10 K Ω Thermistors, Frequency/Pulse Input Rapid Sampling - Up to 4000 Samples/Sec (Single Channel Burst Mode) Large Data Storage - 512 K Samples Graphical Display - Shows Collected Data as Measured Values, Graphs or Tables Multiple Logging Sessions - Stores up to 100 Recording Sessions Powerful Analysis Software for Windows 95/98/NT/2000/ME/XP/VISTA The datalogger is very easy to use because all its functions are broken down into an 8-icon menu.The four buttons on the datalogger ’s front keypad can be used to browse every menu and execute any of the commands. The OM-DAQPRO-5300 has eight input channels for measuring voltage, current, temperature and pulses. User selectable input types/ ranges are 0 to 24 mA, 0 to 50 mV, 0 to 10 V, 2252 Ω or 10 K Ω thermistors, PT100 RTDs, type J, K or T thermocouple temperature sensors, internal temperature, pulse counter, frequency meter and up to 20 user defined sensors (used for scaling analog voltage or current inputs in engineering units). The OM-DAQPRO-5300 can record data from up to eight 2-wire or four 3-wire PT100 RTD inputs (two input channels are required for each 3-wire PT100 RTD input connected).Frequency/pulse counter is only available for input 1. The datalogger provides a simple and straight forward tool for defining up to 20 custom sensors. Almost any 0 to 10 V and 4 to 20 mA sensor or transducer can be displayed and scaled in meaningful engineering units, e.g., psi or gpm. The sensor definitions are stored in the datalogger ’s memory and are added to the sensors list. The sensor ’s readings are displayed in the user-defined units both on the OM-DAQPRO-5300 ’s LCD screen and the Windows software. The inputs use pluggable screw terminal blocks for easy connection. An internal clock and calendar keeps track of the date and time of every sample measured. The OM-DAQPRO-5300 can automatically activate an external alarm device, e.g., energize an audible alarm or turn on a warning light,when an input channel is outside a specified range (Input/Output 8 serves as either an input or an alarm output). The external alarm device (audible or visual alarm) is connected to the screw terminals of Input/Output 8. The alarm output is an open collector output which is analogous to an electrical switch. High/low alarm levels and also whether or not the alarm output is activated during an out-of limit condition can be set for each input channel individually. Windows Software The OM-DAQPRO-5300 system also comes with the powerful Windows software. When the datalogger is connected to a PC, live displays can be viewed at rates of up to 100 samples/sec, and automatic downloads can be carried out at higher rates. The software can display the data in graphs, tables or meters, can analyze data with various mathematical tools, or export data to a spreadsheet. The Windows Software also enables you to set up the datalogger and to send advanced commands such as alarm settings, triggering conditions and text notes. INPUTS Number of Inputs: 8 differential analog inputs Input Type: Selectable type for each input; 0 to 24 mA, 0 to 50 mV, 0 to 10 V, 2252 Ω or 10 K Ω thermistor, PT100 RTD, J, K or T thermocouple, pulse and frequency (input 1 only) Thermistor Type: 2252 Ω/10 K Ω Thermistor, (OMEGA 44000 Series) Range: -25 to 150°C (-13 to 302°F) RTD Type: 100 Ω Pt RTD, alpha =0.00385 Range: -200 to 400°C (-328 to 752 °F) Accuracy: -200 to -50°C, ±0.5% of reading; 50 to 400°C, ±0.5% of reading; -50 to 50°C, ±0.5°C No. of RTD Inputs: up to eight PT100 2-wire channels or four PT100 3-wire channels Range: -25 to 70°C (-13 to 158°F) Internal Linearity Error: ±0.08% of FSR OPEN COLLECTOR ALARM OUTPUT (OUTPUT 8) Maximum Current Sink: 50 mA @5 Vdc (fuse protected) Capacity: 512 KB (512,000 samples total) Analog Sampling Rate: The number of sensors in use limits the maximum sampling rate; 1. Maximum sampling rate with one sensor is 4000 samples/sec 2. Maximum Temperature sampling rate 1 sample/sec 3. Maximum sampling rate with two sensors or more is 1 sample/sec 4. Maximum sampling rate with two PT 100 RTD sensors or more is every 10 seconds 5. Maximum sampling rate with five sensors or more and at least one is thermistor or thermocouple (J, K or T) is every 10 seconds 6. Maximum sampling rate with seven sensors or more is every 10 seconds 7. Maximum sampling rate with eight PT 100 RTD sensors or more is every 10 seconds 8. Datalogger displays readings in real time at rates up to 1 sample/sec 9. Datalogger software displays online readings at rates up to 1 sample/sec Analog Sampling Resolution: 16-bits Keyboard: full keyboard operation - enables manual programming of the datalogger Display: graphic LCD 64 x 128 pixels Power: internal rechargeable 7.2 V Ni-MH battery, built in battery charger, external 9 to 12 Vdc input via included 110 Vac adaptor Battery Life: 40 hrs between charges Operating Temperature Range: 0 to 50°C (32 to 122°F) (Omega daq pro 5300 portable handheld datalogger is the responsibility of Angelia Mayo) |
