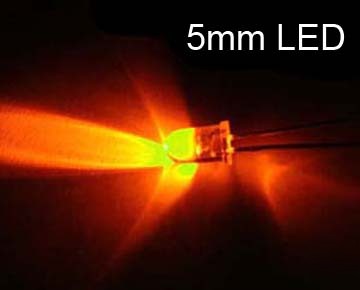

* Emitted Colour : ORANGE * Lens Colour : Water Clear * Peak Wave Length (nm) : 600~605 * Forward Voltage (V) : 1.8 ~ 2.2 * Reverse Current (uA) : <=30 * Luminous Intensity Typ Iv (mcd) : Average in 5000 * Life Rating : 100,000 Hours * Viewing Angle : 20 ~ 25 Degree * Absolute Maximum Ratings (Ta=25°C) * Max Power Dissipation : 80mw * Max Continuous Forward Current : 30mA * Max Peak Forward Current : 75mA * Reverse Voltage : 5~6V * Lead Soldering Temperature : 240°C (<5Sec) * Operating Temperature Range : -25°C ~ +85°C * Preservative Temperature Range : -30°C ~ +100°C Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) Luminous Intensity Typ Iv (mcd) (100 5MM 5000MCD led lamp - ultra bright orange leds diy is the responsibility of Luann Wooten) |
