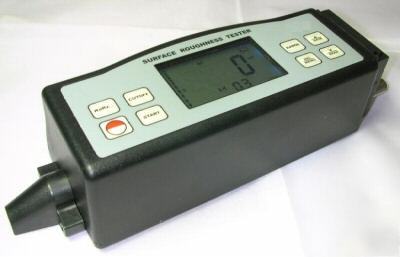

This instrument is compatible with four standards of site to measure surface roughness of various machinery-processed parts, calculate corresponding and clearly display all measurement parameters. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD. * Multiple parameter measurement: Ra, Rz, Rq, Rt * Highly sophisticated inductance sensor * Four wave filtering methods : RC, PC-RC, GAUSS and D-P * Built-in lithium ion rechargeable battery and control circuit with high capacity * Small in size, light in weight and easy to use * Can communicate with PC computer for statistics, printing and analyzing by the optional cable and the software for RS232C interface. *Manual or automatic shut down. The tester can be switched off by pressing the Power key at any time. On the other hand, the tester will power itself off about 5 minutes after the last key operation. Display： 4 digits, 10 mm LCD, with blue backlight Ra, Rq: 0.025-16.00um/1.000-629.9uinch Rz, Rt: 0.020-160.0um/0.078-6299uinch Fluctuation of display value: Not more than 6% Test Principle: Inductance type Material of Probe Pin: Diamond Dynamo-measurement of Probe: 4mN(0.4gf) Vertical Radius of Guiding Head: 48mm Maximum driving stroke: 17.5mm/0.7inch Cutoff length (l): 0.25mm / 0.8mm / 2.5mm sampling length = 0.25mm Vt=0.135mm/s sampling length = 0.8mm Vt=0.5mm/s sampling length = 2.5mm Vt=1mm/s Power Li-ion battery: rechargeable Operating conditions: Temp. 0 - 50 deg. C Size：140x57x48 mm (5.5x2.2x1.9 inch) Come complete with main unit, roughness standard bock, sensor, protective head, screw driver, charger (220V or 110V) and deluxe hard carrying case Please contact us for other country (New ETC6210 roughness tester gauge meter, brand is the responsibility of Camille Hull) |
