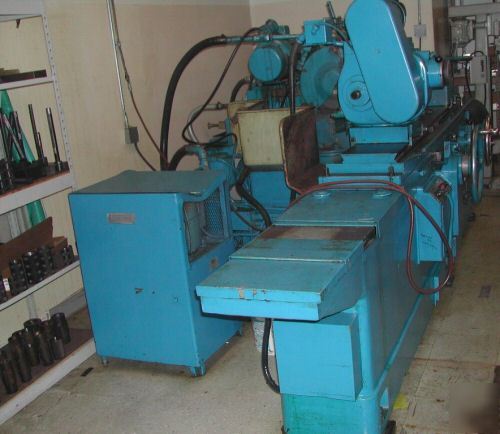

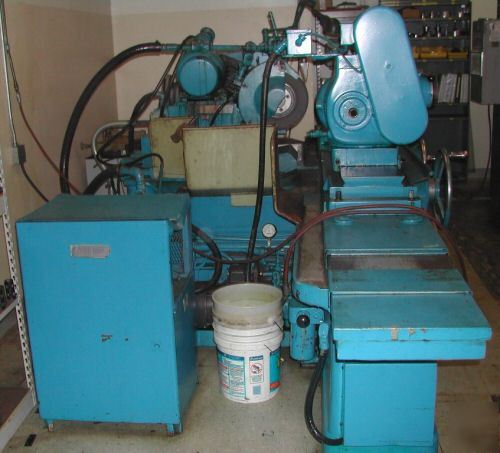

IF YOU HAVE ANY QUESTIONS, PLEASE CALL RICH AT (***)-633-4801 OR VIEW AT http:// /gr/gr.htm 18" X 48" CINCINNATI CYLINDRICAL OD GRINDER SWING OVER TABLE ......................................... 18-15/16" DISTANCE BETWEEN CENTERS ........................... 48" TABLE SWIVEL, TOWARD WHEELHEAD .............. 9 DEGREES AWAY FROM WHEELHEAD ...................... 2 DEGREES LOWER SWIVEL LEFT & RIGHT OF CENTER ............ 90 DEG. UPPER SWIVEL, RIGHT & LEFT ............................. 30 DEG. MOTOR ............................................................... 5 HP GRINDING WHEEL SIZE ....... 14" WHEEL DIA. X 1-1/2" X 5" INF. VARIABLE TABLE SPEEDS ............. 3" TO 220" IPM HAND TABLE TRAVERSE PRE REVOLUTION OF HANDWHEEL (RAPID/SLOW) .................................. 15/16" / 0.2" AUTOMATIC INFEED AT TABLE REVERSAL: LOW ................................. 0.0002" TO .0005" HIGH ................................. .0005" TO .0125" WHEELHEAD MOVEMENT PER TURN OF HANDWHEEL: LOW ............................................. 0.050" HIGH ............................................ 0.250" MINIMUM INFEED ON DIAMETER ................... 0.00005" MOTOR ...................................................... 1 H.P. TAPER HOLE IN SPINDLES ........................... #9 B&S INF. VARIABLE WORKHEAD SPEEDS ............ 50 T0 500 RPM SPINDLE NOSE, AMERICAN STANDARD ..................... 5" HEADSTOCK SWIVEL, TOWARD WHEELHEAD ............ 90 DEG. AWAY FROM WHEELHEAD ........................ 30 DEG. FLOOR SPACE FOR OPERATION:....................72" X 185" APPROX. DIMENSIONS:............................... 166" L-R, 72" F-B, 66" H APPROX. MACHINE WEIGHT ...................... 12,800 LBS FULL HYDRAULIC OPERATION FEATURING: -RAPID ADVANCE & RETRACTION OF WHEEL MACHINE WILL ACCEPT AN 14" WHEEL INFINITELY VARIABLE WORKHEAD SPINDLE SPEEDS WORKHEAD SPINDLE IS BOTH LIVE & DEAD (Cincinnati 18" x 48" universal cylindrical grinder is the responsibility of Zelma Gibbs) |
