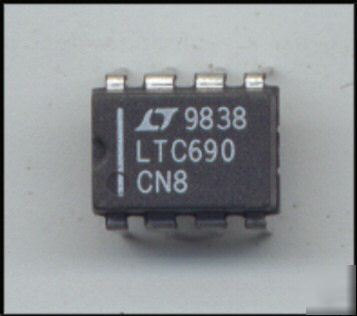

Now over 1,000 items in our Store! Please note the following spec sheet may cover more than one product. Guaranteed Reset Assertion at VCC = 1V Fast (35ns Max) Onboard Gating of RAM Chip Enable Signals 4.65V Precision Voltage Monitor Power OK/Reset Time Delay: 50ms, 200ms or Adjustable Minimum External Component Count Voltage Monitor for Power-Fail or Low-Battery Warning Performance Specified Over Temperature Superior Upgrade for MAX690 Family ®690 family provides complete power supply monitoring and battery control functions for microprocessor reset, battery back-up, CMOS RAM write protection, power failure warning and watchdog timing. A precise internal voltage reference and comparator circuit monitor the power supply line. When an out-of-tolerance condition occurs, the reset outputs are forced to active states and the chip enable output unconditionally write-protects external memory. In addition, the RESET output is guaranteed to remain logic low even with VCC as low as 1V. The LTC690 family powers the active CMOS RAMs with a charge pumped NMOS power switch to achieve low dropout and low supply current. When primary power is lost, auxiliary power, connected to the battery input pin, powers the RAMs in standby through an efficient PMOS switch. For an early warning of impending power failure, the LTC690 family provides an internal comparator with a user-defined threshold. An internal watchdog timer is also available, which forces the reset pins to active states when the watchdog input is not toggled prior to a preset time-out period. Battery-Powered Computers and Controllers for other great component bargains on Microprocessors, Transistors, Capacitors, IC's, Transformers, Diodes, Crystals, and more! And we salute our friends in other countries around the world! (690 / LTC690CN8 / LTC690 / microprocessor circuits is the responsibility of Callie House) |
