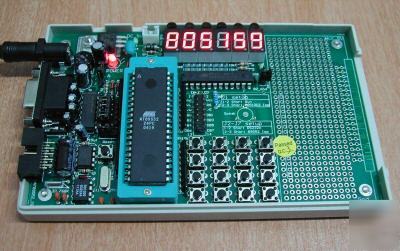

Advanced New designed 8051 Single Board Computer Kit. (Store name 805159, please check 805173 for low-cost version) 8051 Standard, RS232, 6-digit Display + 1-LED, 4x4 Key Board, LCD Interface, EEPROM, Real-time clock, Buzzer, 8951 IC-fixture, 40x89mm Experiment area. Special Feature: Support Philips P89C51RD2; Atmel AT89S51 ISP In-System Programming. Schematics will send you by request. OnBoard ICs: AT89S52, 24C02 EEPROM, MAX232, HT48R10A LED driver, DS1302 RTC, 7805 Pwr. Power: DC 5V, or AC 8~12V, 200mA Board Size: 142 x 89 mm, with plastic back cover. ISP AT89S52: http:// /dyn/resources/prod_documents/doc1919.pdf AT89ISP.exe - need a download adaptor to flash the AT89S52. (software CD included, adaptor not included) WINISP.exe - need change to Philips P89C51Rx2 MCU (CD Included). FlashMagic (not confirmed): http:// /software/flashmagic/ New Benefit: Sample source code.. (New 805159 8051 89C51 89S51 mcu kit, sbc, 6-digit led is the responsibility of Ted Hawkins) |
t.hawkins@cedar--rapids.com (Ted Hawkins) for more information.
