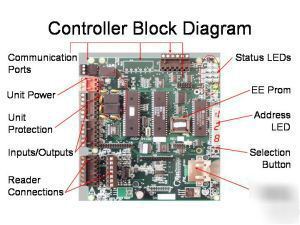

The PXL-510 Tiger II Controller Platform The new PXL-510 Tiger II Controller platform has taken Keri's acclaimed proximity-based access control system to the next level.Just like the PXL-500 it works in conjunction with; the PXL-510 is Strong enough to manage a 256 door network at a single site or 256 doors per site at multiple sites, yet tame enough to handle a single door, the PXL-500 continues Keri's tradition of flexibility and expandability. UL/CSA CERTIFICATION: The PXL-510 is UL certified under UL-508 (Control Equipment) * Locking Metal Enclosure that can also house KPS-4 Power Supply and battery * Added RAM for increased cardholder capacity (up to 65K per controller) * Alarm integration capability with GE Interlogix/Caddx NX-8E Alarm Panel * On-board LAN socket for new low cost LAN-500 * Increased EEPROM memory to support future enhanced firmware capabilities Installer Features and Enhancements * Double row header pins to ensure SB-593 is properly seated on PXL * Additional LED indicator to confirm SB is properly seated * RS-232 connector changed from DB-9 to quick disconnect terminal block * RS-485 continuity indicator LED * RS-485 connector different size so as not to interconnect with power input * LCD Display moved up so as not to hang below the PC Board * More protection for RS-485 circuitry * Added relay protection for arc suppression Other Great Installation Features - Inherited from the PXL-500 * Integrates to the GE/Interlogix NetworX (Caddx) NX-8E Alarm Panel to provide arming and disarming from the access system's readers as well as monitoring and reporting of all alarm system activity through the supplied Doorsâ„¢ software. * On-board diagnostic tests built into the controller firmware * Diagnostic LEDs on the controller board to assist with troubleshooting communication and controller power issues * Automatically senses communication method (direct connect to PC or via modem) * Auto-Configures RS-485 grounding for optimum performance - NO JUMPER SETTINGS * Quick disconnect terminals * Software auto-configures system components, no data entry required * Push-button setting and visual LED display of address selection - NO DIP SWITCHES (Pxl-510P tiger controller ii from keri systems is the responsibility of Alvin Logan) |
