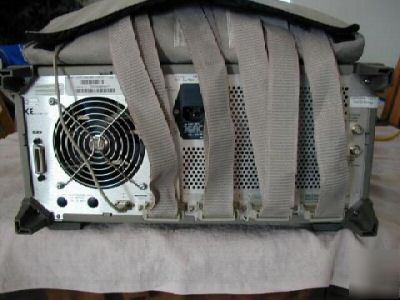

These logic analyzers come in sizes from 34 to 126 channels and are capable of state and timing analysis. 100 MHz speed in state mode, with 2 state clocks/qualifiers. 4K state memory per channel, 8K in half channel modes. Conventional Timing: 250 MHz all channels, 500 MHz, half channels. Transitional Timing: 125 MHz all channels, 250 MHz, half channels. Glitch Timing: 125 MHz half channels. RS-232 and HP-IB interfaces are standard. PRODUCT SPECS: *** 34 to 126 channels *** Timing 250 MHz on all channels, 500 MHz half channels *** Transitional 125 MHz all channels, 250 MHz half channels *** Glitch 125 MHz half channels *** State Analysis 100 MHz in all modes *** Clock channels 6 of the 136 *** Memory 4 k/channel, or 8 k in half channel mode setup / hold time 3.5/0 nS to 0/3.5 nS adjustable in 500 pS increments *** State Time Tag Resolution 8 nS *** Min. Detectable Glitch 3.5 nS. For Technical Data: http://cp.literature.agilent.com/litweb/pdf/5963-2172E.pdf Reasonable offers are always well come. REASONABLE ONES! This is my website for more equipment you may need: http://aaaequipmentresources.com/index.html (@@ hp - agilent 1660A logic analyzer with extras @@ is the responsibility of Linda Maxwell) |
Linda-Maxwell@cedar--rapids.com (Linda Maxwell) for more information.
