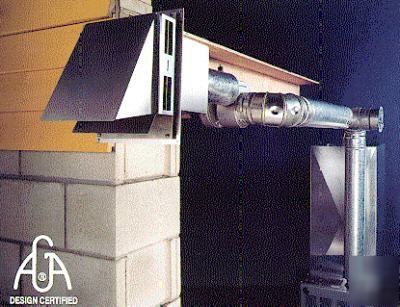

Side Wall Vent Systems save time and money and are excellent for electric to gas/oil, renovations, new construction or for replacing deteriorated chimneys. Side wall venting saves costly materials and labor on two, three or more story runs. It also increases living space by cutting out interior chases. Proven safety interlocks assure proper exhaust, a feature conventional chimneys do not offer in today's homes and buildings. GPAK* Series Models: GPAK-JT*, GPAK-1T*, GPAK-1TR* GPAK* gas vent packages combine the Power Venter, VH1-4 Vent Hood and 4" Barometric Draft Control to make it easier for the wholesaler to inventory and the contractor to order. GPAK* Series Power Venters include a factory prewired Fan Proving Switch and non-adjustable 45 second, post-purge Relay/Timer to purge the vent system of residual flue gases after burner cycle has completed. AGA Certification and package concept make the GPAK a popular Side Wall Venting solution. Ideal For Replacing Plastic pipe on 80+ gas furnaces Safety and performance features time-tested in over a million installations: All operating components located indoors for weather protection and easy servicing. Capacities up to 250,000 BTU/hr. Accommodates vent pipe runs up to 100 equivalent feet. Regulated, consistent draft throughout burner cycle. Built-in Fan Proving Switch interlocks with gas valve. Standard 45 Second Post-Purge Relay/Timer. Kit includes everything needed for installation, except vent pipe. (HS-Series does not come with the vent hood or Draft Control) Durable, heavy-duty 5052 aluminum Vent hood. (Gpak* Series only) AGA design certified for gas furnaces, boilers, pool heaters, unit heaters and commercial water heaters. (HS-Series is UL approved) GPAK-SERIES MODEL SELECTION TABLE Maximum Total Vent Pipe Length 1. If the appliance flue outlet is greater than 4", install a tapered reducer after the draft hood, draft diverter or barometric draft control, reducing vent pipe diameter to 4". All vent pipe from the appliance to the Power Venter may be 4". 2. Table is based on equivalent length of straight vent pipe. 90 degree elbows are equiv. to 6 feet of straight vent pipe. 45 degree elbows are equivalent to 3 feet of straight vent pipe. 3. Determine maximum pipe length from type of equipment being vented and GPAK Model. Column A pipe runs over 30' linear feet should use Type "B" vent. Column B & C pipe runs over 15 linear feet should use type "B" vent. 4. Column C allows for up to a 40,000 BTU/hr input atmospheric water heater common vented with a fan assisted appliance from Column B. 5. All reducers and vent pipe are to be supplied by the installer and are available from your local heating wholesaler. 6. Models include a 4" Vent Hood and Draft Control and are authorized for use on furnaces eligible for the HTPV Corrective Action Program. Installations for the HTPV Program must use Type "B" vent. 7. Also available, GPAK-1TR* for use with Rheem, Ruud, Weatherking and Heat Controller Brands. INCLUDED GPAK-SERIES COMPONENTS Relay/Timer -24V - 45 Second Post-Purge Time Delay Fan Proving Switch-3FLA, 18 LRA@120 VAC VH1-4 - 4" Heavy Duty 5052 Aluminum DC-4 - 4" Barometric Draft Control (Tjernlund gpak-jt gas side wall power venters is the responsibility of Avis Landry) |
