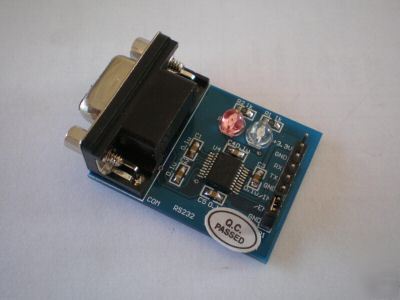

RS232 To TTL Adapter AVR PIC ARM7 - MAX232 MAX3223 1µA Supply-Current True +3V to +5.5V RS-232 Transceivers with AutoShutdown # Built with MAX3223/SP3223 from MAXIM/SIPEX/TI # Accepts 5V logic input with 3.3V supply # /EN & /INVALID control pin in 8 pin Header for powerdown control # Header pinout 1= 3V - 5.5 Vcc 2,5,8= GND 3= RX 4= TX 6=/IN(/invalid) 7= /EN (/en) # RS232 To TTL Adapter AVR PIC ARM7 ARM9 - MAX232 MAX3223 (7 x RS232 to ttl adapter avr pic ARM7 - MAX232 MAX3223 is the responsibility of Leona Hood) |
leona-hood@cedar--rapids.com (Leona Hood)
for more information.
