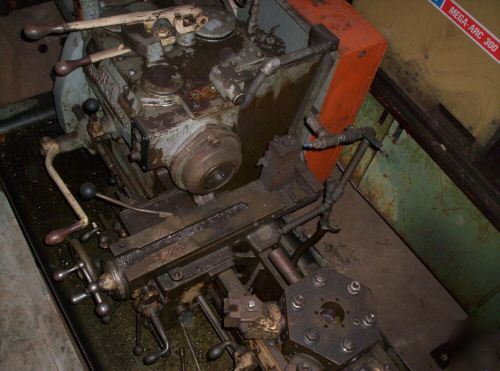

SWING OVER BED..........................................................15 3/8 SWING OVER CROSS SLIDE...........................................7" BAR CAPACITY (ROUND)................................................1 1/2" CHUCK SIZE...................................................................10" HOLE THRU SPINDLE.....................................................1 27/32" MAX. DIST. END OF SPINDLE TO TURRET FACE............26 1/4" LONGITUDINAL FEED..................................................... .003 - 0.30 LONGITUDINAL..............................................................17 1/4" CROSS TRAVEL............................................................8" LONGITUDINAL FEED................................................... .003 - 0.30 CROSS FEED............................................................... .0025 - .026 SPINDLE SPEEDS.........................................................12 SPEED RANGE..............................................................67 - 148 RPM HORSE POWER............................................................7 1/2 HP Prefer Local Pickup. I can load this on the carrier of your choice for free, but a crating fee would have to be negotiated if this would need to be crated. (W & s no. 3 turret lathe is the responsibility of Lucia Sullivan) |
Lsullivan@cedar--rapids.com (Lucia Sullivan) for more information.
