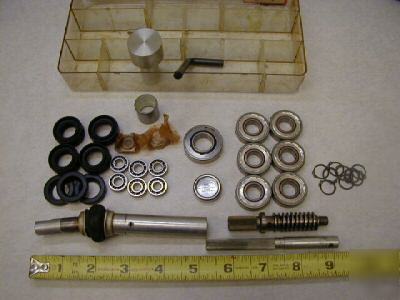

* FOR A BURGMASTER MULTI SPINDLE PRODUCTION DRILL PRESS. I DO NOT KNOW WHAT MODEL MACHINE THESE ARE FOR THERE ARE TWO SHAFTS , ONE HAS( EXTERNAL SPLINESâ€Aâ€) AND A KEYWAY AND THE OTHER (“B HAS INTERNAL SPLINES) THAT THE FIRST SHAFT WILL MESH WITH A = 4.000†TOTAL OVERALL LENGTH, .370†DIA OVER SPLINE WITH A 5/32" CROSS HOLE ON THE OPPOSITE END. B = 5 3/16†OVERALL LENGTH, .465†/ .470†DIA ON END WITH ONE FLAT ON IT THE OPPOSITE ENS HAS AN INTERNAL STRAIGHT SPLINE AND THE OD IS.610†/ .615†DIAMETER THERE IS ONE WORM GEAR, 3" LONG WITH 5/16" THREADS ON THE WORM END AND SPLINED ON THE OPPOSITE END .437" OD WITH A 1/4" DIAMETER HOLE ON THAT END ALSO. 1 LARGER BEARING 1.256" OD X .590" ID X.350" WIDE BRG # 9102PP 6 MEDIUM BEARINGS 1.1000" OD X .470 " ID X .312" WIDE BRG #6001 2RS 8 SMALLER BEARINGS .625" OD X .250" ID X.195" WIDE BRG# (NONE) 11 RUBBER SEALS 1" OD X .580" THRU X 1/4" (APPROX) (New burgmaster ( old stock , spidle drive shaft) brgs is the responsibility of Mercedes Figueroa) |
Mercedes_Figueroa@cedar--rapids.com (Mercedes Figueroa) for more information.
