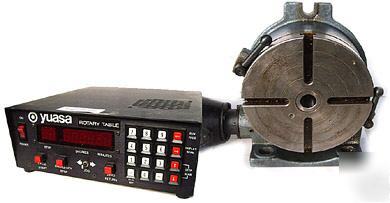

The yuasa pih-500 digital indexing head is a fully automatic, programmable, rotary positioning device. The unit is made up of two parts: the mechanical head which holds the workpiece and the electronic unit which controls the rotation of the spindle. Positioning of the workpiece is accomplished by "programming11 the angular movements into the memory of the control and then pushing the cycle start switch on the front panel. The spindle will rotate exactly through the specified angle to the new position. The control is then ready to execute the next step in the program or to repeat the previous step. FEEDRATE SELECTABLE FROM 5 DEG/SEC TO 150 DEG/SEC (30 SPEEDS FROM Fl TO F30) +/- 15 SECONDS IN ONE DIRECTION MINIMUM OUTPUT TO SPINDLE 1.0 MINUTES MAXIMUM OUTPUT TO SPINDLE 540 DEGREES 150 OZ.-IN. SYNCHRONOUS STEPPING MOTOR 72 TO 1 SELF LOCKING WORM GEAR WITH PRELOAD 100 DEGREES F. MAX. AMBIENT AIR TEMP. 120 VAC +/- 5 PERCENT @ 3 AMPS 4.000 +/- .001 FROM SPINDLE CENTER TO BASE Works as an Indexing table in the Vertical Position and horizontal as well as a conventional rotary table for circular cutting, angle setting, boring and spot facing. Disengagable gear permits free table rotation. Worm shaft is hardened and ground. Optional Dividing Plates and crank handle can be attached to the rotary table drive shaft. Overall dimensions: 8" x 4" x 10 1/2" tall. A Proud Member of the Machinery Dealers National Association. Supplying Quality Machinery and Tooling for Over 55 Years!! Member: Machinery Dealers National Association Hours of Operation: Monday - Thursday 9 a.m. to 5 p.m. - Friday - 9 a.m. to 4 p.m. 1311 South Ponca Street - Baltimore, Maryland 21224 Phone (***)-633-2300 or (***)-394-4399 - Fax (***)-633-7737 (Yuasa / haas 8" programmable horiz/vert. rotary table is the responsibility of Raymond Flowers) |
