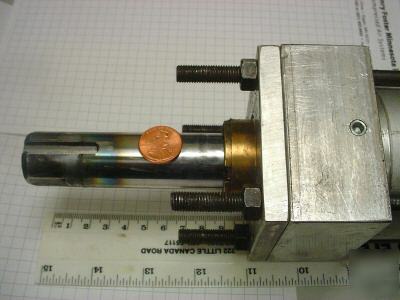

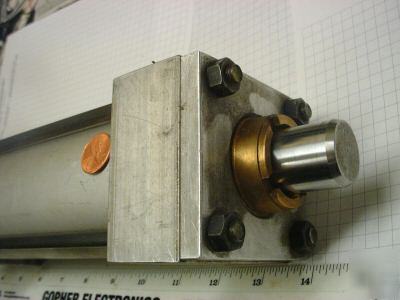

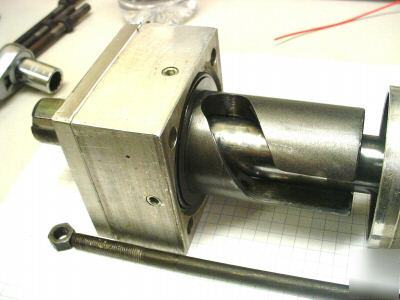

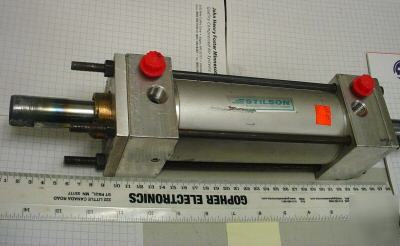

CLAMPING CYLINDER 1" SHAFT 90 DEGREE INDEX ROTATION Production Clamping Cylinder 3/8 pipe thread 1" shaft 1" travel and 90 degree rotation on overall 15" long dual ended shaft. Index and lock with two set screws start and stop angle. Key way on one end. 2 inch extension both ends. 1 inch travel for 1" and 3" length and 90 degree rotation. Body 3 iches by 3 inches by 10 inches with four 5/16"-24 mounting bolts. Clamp your cross arm to shaft. Apply air pressure (2.5" bore). Clamp bar now rotates 90 degrees over equipment and tightens. Great to hold down heavy objects. See pictures for more details. (90 degree index rotation clamping cylinder 1" shaft is the responsibility of Leonor Kramer) |
