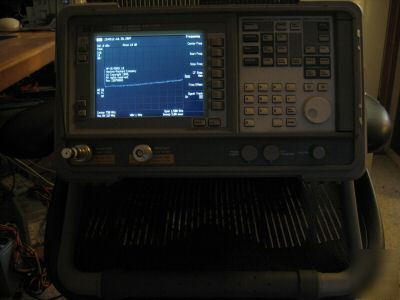

Agilent Technologies E4411A Features : E4411A Potrable Spectrum Analyzer , 9 kHz to 1.5 GHz * Economical and portable, rugged packaging and construction, easy to use * Frequency range 9 kHz to 1.5 GHz with frequency accuracy of ±2.0 kHz at 1 GHz (without temperature) * Phase noise <= -90 dBc/Hz (10 kHz offset) and residual FM <=100 Hz P-P * Resolution bandwidths 1 kHz to 3 MHz * Maximum amplitude range -120 dBm to +30 dBm * Maximum dynamic range >=78 dB/>=85 dB (2nd/3rd order) * Log range 85 dB with 10 divisions on screen * 15.8 cm, high resolution, LCD display, continuous background environment alignment (Agilent EE4411- eas-L1500A spectrum analyzer is the responsibility of Glenna Wilcox) |
Gwilcox@cedar--rapids.com (Glenna Wilcox)
for more information.
