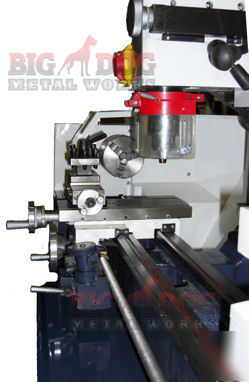

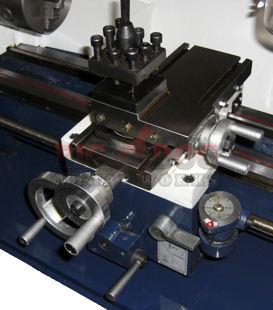

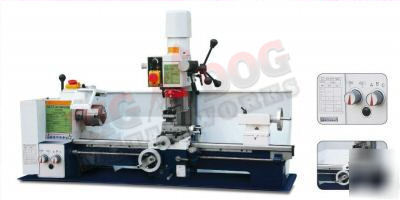

The BD-CX23-750 multi-purpose lathe/milling machine. Absolutely brand new,unused,and in original packing case. Direct from manufacturer and fully guaranteed. Terrific value for money. Ideal for the professional engineer or model maker alike. This is a quality item, precision made, and the main specifications are: * 750W Lathe Motor/ 550W for Milling * Distance between centres : 750mm (30") * Swing over bed : 230mm (9") * Chuck diameter : 100mm (4") * Spindle bore : 20mm (3/4") * Cross slide Travel : 125mm (5") * Tool slide Travel : 48mm (1.9") * Range of metric threads : 0.5mm - 3mm * Range of imperial threads : 8-56tpi * Spindle accuracy: 0.01mm (0.000394") * Drilling Capacity : 16mm (.63") * Face Milling Capacity : 30mm (1.2") * End milling Capacity : 13mm (1/2") * Spindle stroke for milling : 180mm * Spindle Speed: - Lathe 100 - 1800rpm * Spindle Speed - milling : 50-2500rpm. * Accuracy inspection report included (New bd-CX23-750 multi-purpose lathe/milling machine is the responsibility of Fred Wagner) |
f.wagner@cedar--rapids.com (Fred Wagner)
for more information.
