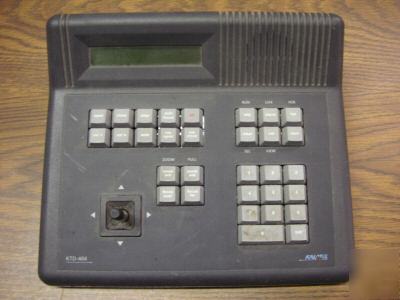

Kalatel KTD-404 Controller Keypad The KTD-404 is a keypad that controls Digiplex system components. It can address and manage 512 PTZ (pan/tilt/zoom) receiver sites, operate a matrix switcher with 64 monitor outputs, and address and select views from as many as 64 multiplexers. In CyberDome applications, the KTD-404 offers exceptional pan/tilt maneuverability with its variable speed joystick. In situations where two-way, voice communication is desired, an audio card can be added — establishing correspondence through its built-in speaker and 2.5 watt audio amplifier. Access control allows the user to remotely open doors and gates. When call-ins occur, a built-in site annunciator sounds off, alerting the user when attention is needed. The KTD-404 is capable of stacking as many as 32 call-in requests in the order in which they were received. Authorized personnel may program the KTD-404 and other Digiplex components through confidential access codes. Programmable components include CyberDomes, PTZ receivers, matrix video switchers and alarm interfaces. All data is stored in nonvolatile memory. The KTD-404’s comfortable, ergonomic keypad is housed in high-impact, injection-molded plastic. It features large, easy-to-read buttons and a backlit, liquid crystal display (LCD). It communicates with Digiplex components through an RS422 signal over twisted-pair wire. KTD-404 Variable-speed controller keypad, controls 512 PTZ sites, 64 switched monitors, multiplexers This unit is used and was removed from service due to an upgrade. We tested it before listing, found to be in working order, however, we cannot provide any warranry for this item. (Ktd-404 kalatel ge controller keypad ptz joystick used is the responsibility of Ivan Walsh) |
ivan.walsh@cedar--rapids.com (Ivan Walsh) for more information.
