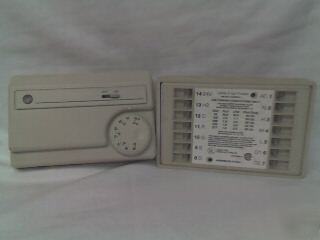

LANDIS & GYR POWERS THERMOSTAT Electronic thermostat having high and low voltage control capability The terminal block has the following terminals and associated description: ______________________________________ Pin nation Description Type Of Wiring ______________________________________ 1 .about. Line Power High or low voltage AC Line Common High or low voltage AC 3 H Fan High High or low voltage AC 4 M Fan Medium High or low voltage AC 5 L Fan Low High or low voltage AC 6 O1 Output 1 High or low voltage AC 7 O2 Output 2 High or low voltage AC 8 D Damper Out Low voltage DC 9 S Normally Closed Input Low voltage DC 10 G Low Volt Common Low voltage DC 11 R Return Air Sensor Low voltage DC 12 C Changeover Sensor Low voltage DC 13 H2 2nd Heat Stage Low voltage DC 14 24V 24 VAC Power Low voltage AC ______________________________________ 1. A thermostat for controlling heating and cooling equipment of the type which includes a fan and at least one end device consisting of at least one heating and cooling fluid control valve, at least one electric heating apparatus and at least one air damper, said When the dial knob 26 is removed, an enlarged opening 38 reveals an exposed jumper which can be shorted for the purpose of initiating a test sequence to determine if the thermostat is operating properly. Once the test jumper is shorted, the test sequence is started by rotating the set point potentiometer fully clockwise to initiate the test without a changeover temperature test. It can be rotated fully counterclockwise to initiate the test with a changeover temperature test. The start determines if the room or air temperature is greater than 60 degrees F. and less than 80 degrees F. ANY QUESTIONS PLEASE CALL 1-(***)-407-4296 (Landis & gyr powers thermostat 556-221 X1350074 is the responsibility of Pansy Park) |
