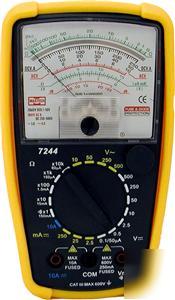

Mastech 20-Range Anolog Multimeter Decibel dB Meter NIB The Mastech 7244 is a 20-Range Analog Multimeter, which you can use to measure AC/DC voltage, DC current, resistance, continuity, decibel values/dB and diode test. This meter is well known for its accuracy at its low DC voltage and current measurement, to measure a DC voltage under 10 volts, you have four ranges to choose, they are 0.1V, 0.5V, 2.5V and 10V. For DC current, you can measure current as low as a few micro amps using the 50 micro amp range with 3% accuracy. Battery life: 10 hours of continuous use Dimensions: 6 1/2" X 3 1/2" X 1 1/2" Fuses: 250 mA / 250 V & 10 A / 250 V DCV: 0 - 100 mV ± 0.5%/ 500 mV / 2.5 V / 10 V / 50 V / 250 V / 500 V ± 3.0% ACV: 0 - 10 V / 50 V / 250 V / 500 V ± 4.0% DCA: 50 μA / 2.5 mA / 25 mA / 250 mA / 10A ± 3.0%, (all ranges fused) Resistance:2K / 20K / 200K / 2M / 20M Ohm ± 3.0%, Test leads with shrouded plugs and capped tips Certain images and/or photos used in this template are the copyrighted property of JupiterImages and are being used with permission under license. (Mastech 20-range anolog multimeter decibel db meter is the responsibility of Minnie Owens) |
