Pantograph Shape Cutting Machine Plans
Hundreds of these machines were manufactured by Torchmate over a 17 year period, until we ended production 1n 1998 so we could focus exclusively on cnc cutting systems. This produced a flurry of requests for construction plans for the little workhorse pantograph machine. We are now happy to be able to offer the plans to you. This offer is for the plans only. You purchase all necessary components from sources we identify.
Here's your chance to build your own automatic shape cutting machine for a total investment of under $400. The unit has a capacity of 18" for circles, and 36" for straight lines. When cutting irregular shapes, as the 38" is compressed, the width capacity increases. The machine's capacity may be increased about 25% by slightly varying the design. Cutting speeds are infinitely variable from approximately 6 to 60 inches per minute in forward and reverse.
Included are detailed instructions for making the machine, making your own super-strength magnetic tracer, support stand and more. We even provide you with a source for the special rare earth magnets used in the magnetic tracer, and for the electrical components, bushings, etc.
THE PLANS WILL BE AVAILABLE TO YOU IMMEDIATELY UPON PLACING YOUR ORDER. YOU WILL BE GIVEN THE SECRET INTERNET ADDRESS TO ACCESS THEM. YOU PRINT OUT YOUR OWN HARD COPY.

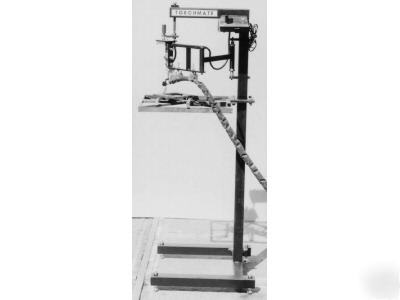

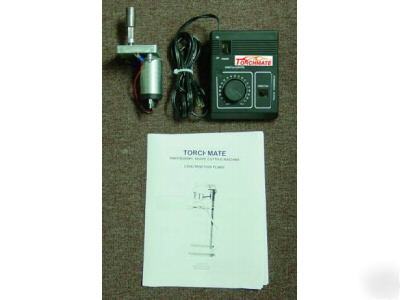

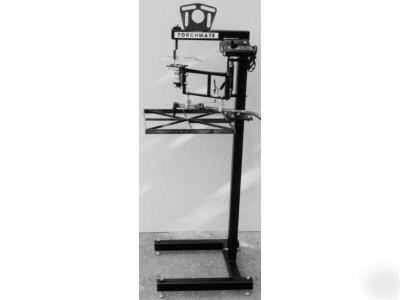

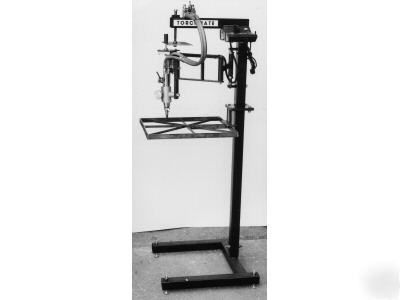

Photos shown here include the plans along with the electronic components and magnetic tracer you will obtain from sources we identify, a completed machine with a manual plasma torch, with a manual oxy-acetylene torch, and with a vertical machine oxy-acetylene torch.
(Pantograph plasma & oxy-fuel shape cutter machine plans is the responsibility of Barry Wilson)
firstname.lastname@example.org (Barry Wilson)for more information.
