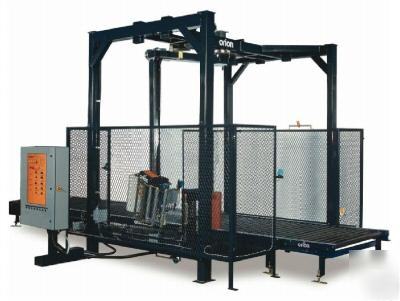

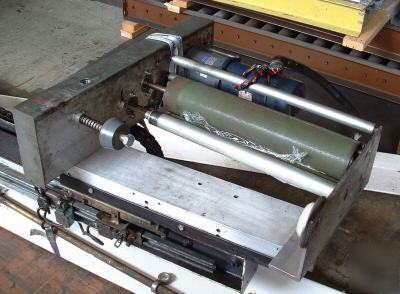

Reconditioned GAP Rotary Arm Automatic Pallet Stretch Wrapper Details - Recently received as a trade-in, this wrapper was running production until it's shutdown for replacement. Featuring an upgraded powered pre-stretch film carriage, this wrapper is suitable for low to medium speed applications and can quickly be made ready for delivery to satisfy your need. This wrapper can be coupled with an existing production line or set up in a stand-alone warehouse configuration. This wrapper is in the process of being fully reconditioned by our factory trained and authorized Stretch Wrap Technicians. * Loads Per Hour: up to 50 LPH (dependant upon conveyor speed, load configuration and wrap pattern required) * Maximum Load Size: 48"W x 48"L x 80"H (typical, dependant upon pass height) * Maximum Load Weight: dependant only upon conveyor capacity * Supply Voltage: 115/230 VAC, 60 Hz, 1 PH, 30 Amps (easily modified for other voltages) * Control Power Circuit: 120 VAC * Controller: Allen-Bradley SLC-500 PLC * Rotation and Up/Down Drives: 1/2 HP, 90 VDC, SCR variable speed * Man Machine Interface: Pushbuttons, Selector Switches, etc. Comment - First picture is stock picture (not actual machine). All others are actual machine. Current Status - Mechanical and Electrical evaluation, reconditioning, and testing is ongoing. (Recond. gap rotary arm auto. pallet stretch wrapper is the responsibility of Matilda Sharpe) |
matilda.sharpe@cedar--rapids.com (Matilda Sharpe) for more information.
