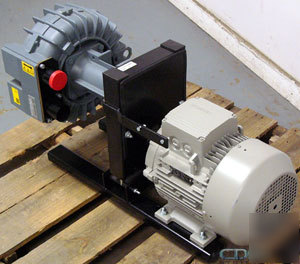

FPZ/Vaculex Vacuum Lift Pump / Vacu-Hoist 40DH Lifter This lot is a complete 'SCL' double stage lateral channel blower / exhauster setup from Vaculex, with an FPZ pump and Siemens motor. This unit was a spare part for a vacu-hoist box lifting setup. Cosmetic condition is Good to Very Good overall. There are a few minor blemishes from being in a stock room for a couple of years though, so we can't say for sure it's unused. The shaft of the motor spins smoothly by hand, even with the belt driven pump hooked up. When we connected it to our mains, the motor started easily and accelerated quickly. Without a vacuum lifter hooked up (no pressure differential across the pump) the air was screaming through the pump like a jet engine. The exhaust was a very strong, steady stream. The motor is a 230/460VAC 3phase 5.5kW unit, much more than required just to turn the impeller, and it sounded very strong. * Vaculex 305405 lifting pump * Siemens 1LA730 series motor, 230/460VAC 3 phase * Effipizeta (FPZ) Type SCL 40 DH blower-exhauster Specifications can be found in this technical catalog from FPZ. The performance of this blower was rated with up to 3.45kW motors . . . you should achieve at least the following levels of performance with this setup: Max differential pressure: 500mBar at 80 cubic meters/hour Max. displacement: 167 cubic meters/hour at 0mBar differential pressure * Is there a loading dock or fork lift available at your location? * Will the delivery driver be required to bring the item inside? * What is your full address and phone number? * Custom built crating is available. Additional Fees apply. Click here for authorization form * We do not accept American Express * Cashier's Check/Money Order * Company Check (10 business-day hold) * hours: Monday-Friday 9:00am-5:30pm CST * address: 12510 Trails End Rd Leander TX, 78641 (Fpz/vaculex vacuum lift pump / vacu-hoist 40DH lifter is the responsibility of Rosetta Jenkins) |
