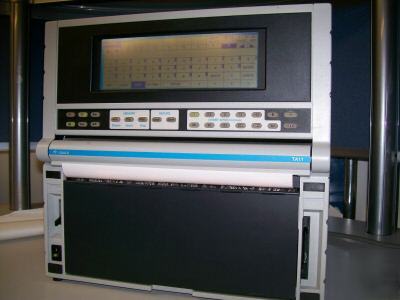

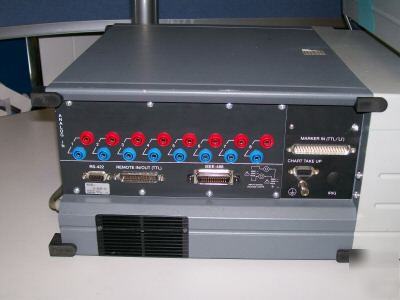

Gould Portable Chart Recorder Model TA11 Used, Great condition Gould Portable Recording System, Chart Recorder. GOULD CHART RECORDER Model: TA11 * Monitor signals at scrolling speeds up to 2.5 mm/s * Any combination of channels trigger on level and window with 0 to 100% pre-trigger * Signal capture to 8 M samples from 1 to 250,000 samples/s * The RS-422A and IEEE-488 communication interfaces allow a program on a remote computer to completely control the recorder * Thermal-array recorder prints discrete or overlapped traces at speeds from 0.01 to 200 mm/s with full annotation including user-entered channel ID * TTL-level inputs control chart speeds, pulse-drive the chart motor, and set grid and time marks on/off; outputs provide basic recorder status, trigger out, and motor pulses out * Optional View II software for Microsoft Windows-based analysis * Integrates a large LCD panel into a flip-panel to provide recording-system function of signal monitoring * While viewing signals on the monitor, you can set trace position, signal gain, and signal offset without running the chart * Displays signals on its monitor as they occur; instead of waiting for the chart or changing the chart speed momentarily, you view signal changes immediately on the monitor * Integrates 8 channels of factory installed signal conditioners into its portable package * General Purpose DC/RMS-differential, impedance protected inputs, 25 mV to 500 VFS, RMS and zero suppress to 1000 V * Capture signals of frequencies up to 35 kHz, too fast for real-time viewing * Trigger to capture transient events by pressing a front-panel button, by time, or on any combination of channels (Gould portable chart recorder model TA11 is the responsibility of Ethel Booker) |
e-booker@cedar--rapids.com (Ethel Booker) for more information.
