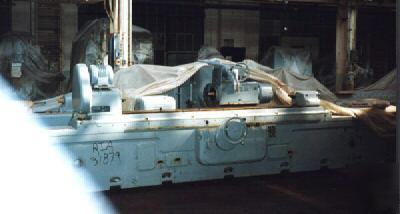

10" x 96" LANDIS PLAIN HYDRAULIC CYLINDRICAL GRINDER New 1952, Serial No 474-40, Model CH, Swing Over Table, Maximum............... 10.75" Grinding Diameter, Maximum.............. 10" Grinding Diameter w/30" Wheel, Maximum.. 10" Grinding Diameter w/20" Wheel, Minimum.. 0" Distance Between Centers, Nominal....... 96" Grinding Wheel Diameter, Minimum........ 20" Grinding Wheel Diameter, Standard....... 30" Grinding Wheel Width, Maximum........... 6" Grinding Wheel Width, Standard.......... 3" Grinding Wheel Hole Diameter............ 12" Table Swivel Graduated.................. 1" TPF Table Swivel Graduated, Included Angle.. 5-DEGREES Workhead and Tailstock Center Tapers.... #14 JARNO Table Longitudinal Feeds, Infinite...... 3 to 130 IPM Grinding Wheelhead Spindle Motor........ 15 HP/1750 RPM Hydraulic Motor, Horsepower............. 3 HP Electrical System....................... 220-440/3/60 Floor Space Required, L x D............. 23'8" x 6'11" Weight, Approximately................... 16800 LBS CONDITION: Appears to be in Very Good Condition As Taken Directly from Government Stand-By Storage. PRICE: F.O.B. OHIO (Toledo)............ $27,500.00 All machines/equipment subject to prior sale. (10" x 96" landis plain hyd cylindrical grinder #17599 is the responsibility of Margery Poole) |
margerypoole@cedar--rapids.com (Margery Poole)
for more information.
