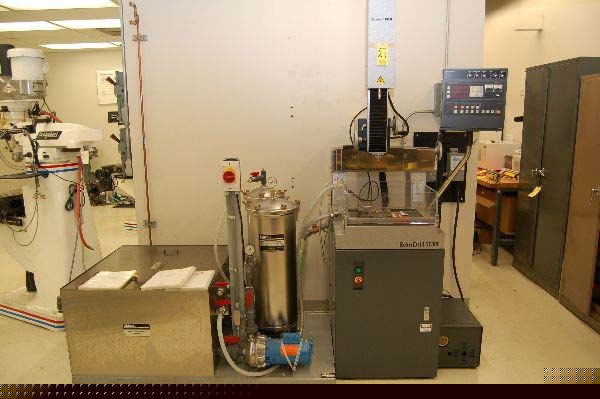

Used Machinery and Machine ToolsUsed MachineryUsed Machine ToolsThousands of Used Metalworking and Plastic Machines & New Machine Tools Photos, Full Descriptions and Prices - Fast & Easy * Manual Lathes, Mills, Drills, Saws * Grinders, Hones, Finishing * Ovens, Furnaces & Environmental EDM HOLE DRILLER, Current EDM ST300C 3 AXIS S EDM HOLE DRILLER, Current EDM ST300C 3 AXIS S MODEL #ST300C EDM HOLE DRILLER w/SRT-2C CONTROLLER II & ETTCO FILTRATION SYSTEM S/N: 832 NEW: 2003 - USED AS A DEMONSTRATOR MACHINE X Axis Travel:.......................... 12" (300mm) Y Axis Travel:........................... 8" (200mm) Z Axis Travel:........................... 16" (400mm) Guide Axis Travel:................... 10.5" (266mm) Workpiece Weight (Max):....... 682 lbs (310 kg) Granite Worktable Size:.......... 12" x 12" (300 x 300mm) Standard:................................. 0.004" - 0.256" (0.1 - 6.5mm) With AEC-24:.......................... 0.010" - 0.118" (0.25 - 3.0mm) Machine Weight:....................... 682 Lbs. (310kg) Approx. Dimensions:................ 75" x 79" (1905 x 2007mm) "Current EDM's Model ST300 EDM Drill enables precision deep-hole drilling of hard alloys to depths up to 300 times Installed in hundreds of shops around the world, this unique system is capable of fast and accurage performance, drilling a 0.040" hole through 1-inch tool steel in approximately 35 seconds, virtually burr-free. The ST300 can drill at all angles using electrodes ranging from 0.004" to 0.256" in diameter. For Automatic drilling, the manual ST300 features a standard "Auto-Mode" interface to connect to indexers & controllers. "Running-costs" are greatly reduced because the ST300 uses additive-free water dielectric fluid, and with the optional Aquarius Package TM, the ST300 comes equipped with a submersible worktank and a self contained dielectric fluid filtration system. The optional EDM oil "HC Package" enables Rugged construction includes a cast bridge design keeping overhead X and & ways free from dielectric sprays resulting in cleaner operation and reduced maintenance. A precision- lapped granite worktable helps assure workpiece stability and long-term drilling accuracy." LESS THAN 100 HOURS TOTAL ON MACHINE - USED AS A DEMONSTRATOR BY FORMER OWNER (CORDIS - DIV. OF JOHNSON & JOHNSON IN ** AS NEW CONDITION & APPEARANCE ** Machine Location: HARRISON, NJ Click Here For More Current EDM Machines Click Here For More EDM's - EDM HOLE DRILLER(s) Call Andy at (***) 873-6224 ext 7600 Call Alex at (***) 873-6224 ext 7613 Finance This Equipment For Your Business - Click Here Finance Equipment For Your Business - Click Here * Machinery Values is one of the world's largest machinery dealers, in business since 1971. * New machines are covered under their own warrantees. Details of each warranty can be found within the quotation for all new machines. * Most items in our store are located in our warehouse in Harrison, New Jersey - about 9 miles from New York City. You may inspect any item prior to purchase, under power in most cases, simply by calling and arranging an inspection. There is no charge for this. (Edm hole driller, current edm ST300C 3 axis s is the responsibility of Gabrielle Wilkins) |
g-wilkins@cedar--rapids.com (Gabrielle Wilkins) for more information.
