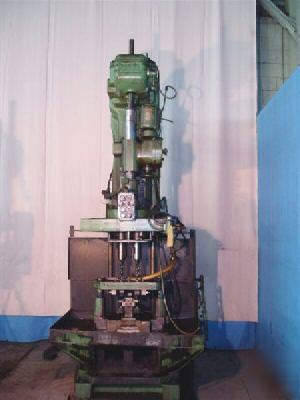

28" CINCINNATI-BICKFORD PRODUCTION 4-Spindle Multi-Spindle Drill Head Spindle-Head Adjustment, Vertical...... 17.5" Spindle Travel, Power.................. 12" Spindle-Nose to Table, Maximum......... 48" Spindle-Nose to Table, Minimum......... 18" Spindle-Nose to Base, Minimum.......... 30" Spindle-Nose to Base, Maximum.......... 60.875" Swing to Center of Circle, Maximum..... 28" Table Adjustment, Vertical............. 12" Table Working Surface, W x L........... 21" x 24" Base Dimensions, W x L................. 33" x 60" Spindle Diameter....................... 3.94" Spindle Taper.......................... #5 MT Spindle Speeds, Range.................. 75 to 1800 RPM Spindle Feeds, Range................... .004 to .040 IPR Electrical System...................... 220-440/3/60 Overall Height......................... 10'3" Weight, Approximately.................. 3100 LBS PRICE: F.O.B. OUR WAREHOUSE............ $1,450.00 All machines/equipment subject to prior sale. (28" cincinnati-bickford production sgl-spdl drill 23436 is the responsibility of Eva Rich) |
Eva.Rich@cedar--rapids.com (Eva Rich) for more information.
