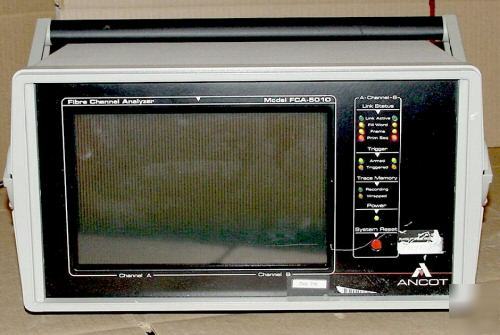

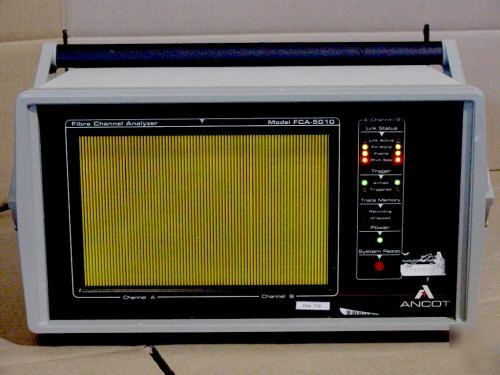

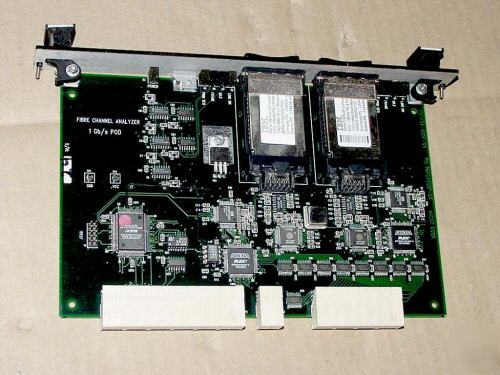

THANK YOU FOR VISITING VTECHNOLOGY! ANCOT FIRRE CHANEL ANALYZER FCA-5010 USED UNIT * 1 module fibre chanel 1 Gb/s POD PN: PBFCA500F-04 2 PORT. * POWER INPUT 110 V/AC 60Hz * Display garbage as seen in pictures. * Performance/Compatibility * Data transfer rates: 1 Gbps or 266 Mbps * Topologies: arbitrated loop, fabric, and point-to-point * Media: optical fiber (single or multi-mode) or copper * Connectors: SC (Fiber) or DB-9 (Copper) * Passive, non-intrusive circular tracing * 128K event trace memory (512K on FCA-5010) * Split-screen display of time-synchronized channels * Captures data in 10B format * Enables future protocol upgrades * Both Channels are time-synchronized * Fibre Channel traffic captured directly by hardware * Simple Record-Pause-Stop-Display-Clear tracing control * Search for a trace event * Upload/download trace to host via serial port * Remote control via serial port * * Trigger to stop recording when trace memory is full, or position trigger event anywhere in the trace * Trigger on channel, A, B, A or B, A and B * Eight-level configurable trigger circuitry * Flexible hardware-based filtering * Per channel filter pattern setup * Filter in or out matching frames * Save All or Skip Payload * It come with no accessories as seen in pictures and no any manuals. * Personal/Company check (Note: Personal/company check will be held 5-8 business days for clearance.) * 8.250% sales tax will be applied if you are a California resident. * Returns are allowed only within the 10 days from the date unit is received for the money back or replacement. * Business Hour: Monday - Friday 9:00am - 6:00pm PST (Ancot fibre chanel analyzer fca-5010 is the responsibility of Paul Middleton) |
Paul-middleton@cedar--rapids.com (Paul Middleton) for more information.
