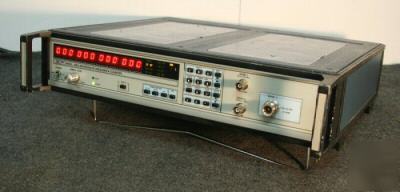

EIP 545A 10Hz-18GHz Frequency Counter w/Opt 08/W10 NICE The 545A Microwave Frequency Counter is an exceptional counter at a fantastic price. A front-panel keyboard is used to enter general instructions to the microprocessor making this an easy to use instrument which is ideal for home, research laboratory, production, test bench or field environments. * Frequency in the range of 10Hz to 18.0GHz is read directly from a 12-digit LED display which is sectionalized into GHz, MHz, kHz and Hz making it easy for even unskilled operators to make measurements quickly and accurately. * Three input bands are standard: Band 1 is from 10Hz to 100MHz (sensitivity of 25 mV rms) with 1 Mohm impedance (BNC); Band 2 is from 10MHz to 1.0GHz (sensitivity of -20 dBm) with 50-ohms impedance (BNC); Band 3 is from 1.0GHz to 18.0GHz (sensitivity: -30 dBm from 1.0GHz to 12.4GHz; -25 dBm from 12.4GHz to 18.0GHz) with 50-ohms impedance (TYPE N). * Time base crystal frequency is 10MHz with an aging rate of <3 x 10-E07/month, 10MHz square wave (1 V p-p minimum into 50-ohms) output is available. Overall accuracy is ±(1 count + time base error). * Other features include: Test function (allows for front-panel diagnostics), Sample Rate control (variable from 100 ms to 10 sec) and a Reset control (resets display to zero and initiates new reading). * Option 08 - IEEE and Option W10 * FOR YOUR "PEACE OF MIND" and CONVENIENCE any TESTED and FUNCTIONAL TEST EQUIPMENT WE LIST CAN BE CALIBRATED for an ADDITIONAL CHARGE by AST GLOBAL'S OWN IN HOUSE CALIBRATION LAB. Note: Email or call for Calibration Quote. * Unit has been THOROUGHLY CHECKED by our CERTIFIED LAB TECHNICIAN and is FULLY FUNCTIONAL. * VERY GOOD COSMETIC AND ELECTRONICAL CONDITION. * This Unit Comes with a 5 Day Right of Return. * Over size 1 - Please see explanation below. * Power cords, accessories, probes, manuals, software, etc. are not included unless specifically stated. If after reading the entire text, the item description, and clicking on our links and your question still is not answered, please use the Ask Seller A Question link above. Using our regular email address will cause delays in answering your question. * ACCESSORIES: Power cords, accessories, probes, manuals, software, etc. are NOT included unless specifically stated. Money orders, cashier checks, bank drafts Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) Postal international money orders (please add a $7.50 banking fee) Wire transfers (please add a $15.00 banking fee) RETURNS, EXCHANGES AND WARRANTY: Please feel free to call us toll free (within Continental US) at 1-(***)-216-7159 or (outside Continental US) at 1-(***)-337-6674. Our regular business hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. EST. (Eip 545A 10HZ-18GHZ frequency counter w/opt 08/W10 nice is the responsibility of Mercedes Giles) |
