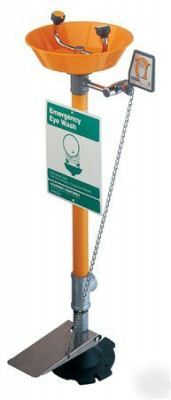

G1825P-HFC Eye Wash, Pedestal Mounted, Hand and Foot Control, Plastic Bowl Application: Free standing, pedestal mounted eye wash. Water flow is activated by either flag handle or foot treadle. Two GS-Plus™ spray heads deliver flood of water for rinsing eyes. Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top†dust cover, internal flow control and filter to remove impurities from the water flow. Valve: 1/2†IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position. Bowl: 11 1/2†diameter. Bowl is orange ABS plastic. Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance. Supply: 1/2†NPT female inlet. Waste: 1 1/4†NPT female outlet. Sign: ANSI-compliant identification sign. (Guardian G1825P-hfc pedestal emergency eye wash is the responsibility of Dixie Valencia) |
