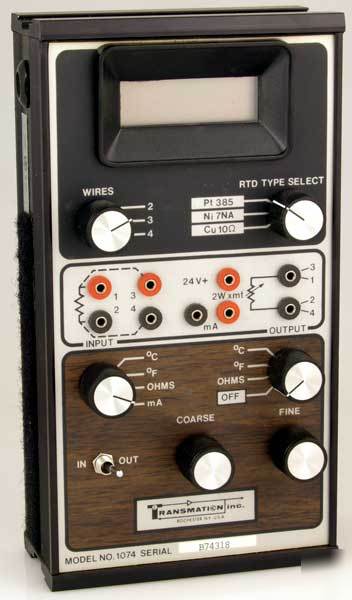

Transmation 1074 Universal RTD Calibrator The handheld 1074 is a microprocessor based universal RTD calibrator. Measures and simulates 3 different RTD types and direct Ohms. Ideal for calibrating temperature transmitters, recorders,indicators and controllers. The 1074 is calibrated for the three most commonly used RTD types: 100ohm platinum, DIN 43760 (1980) curve with alpha; 110 ohm nickel, Bristol 7 nA curve; and 10 ohm copper; Minco 16-9 curve. Values are displayed directly in switch-selectable degrees C or F, with resolution to 0.1 degrees. (Transmation 1074 universal rtd calibrator is the responsibility of Imelda Rhodes) |
